142187
RoHS
RoHS compliant
RoHS compliantPackage SMB
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
SMB Connector Plug, Female Socket 50 Ohm Free Hanging (In-Line) Solder
PDF
/
Buying Options
Total Price: USD $9.25
Unit Price: USD $9.2488
≥1 USD $9.2488
≥10 USD $8.32216
≥100 USD $7.839744
≥500 USD $7.638752
≥1000 USD $7.437672
≥3000 USD $6.633616
Inventory: 220
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Copper
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Package / Case SMB
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 2.599991g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Beryllium Copper
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2004
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Plug, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 335V
Fastening Type Snap-On
Orientation Straight
Frequency 18GHz
Housing Color Gold
Impedance 50Ohm
Connector Style SMB
Number of Ports 1
Body Plating Gold
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Solder

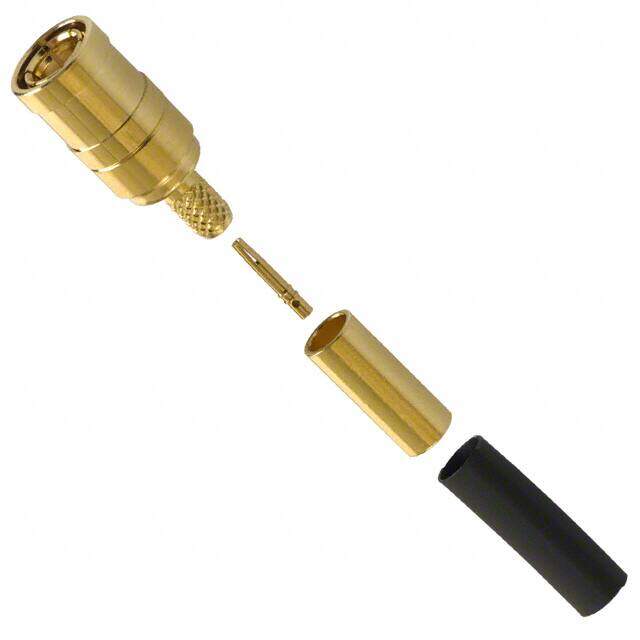

Includes 4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink
Insertion Loss 0.3dB
Body Finish Gold
Cable Group RG-179, 188, 316 Double Braid, M17/152-RD316
Shield Termination Crimp
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
