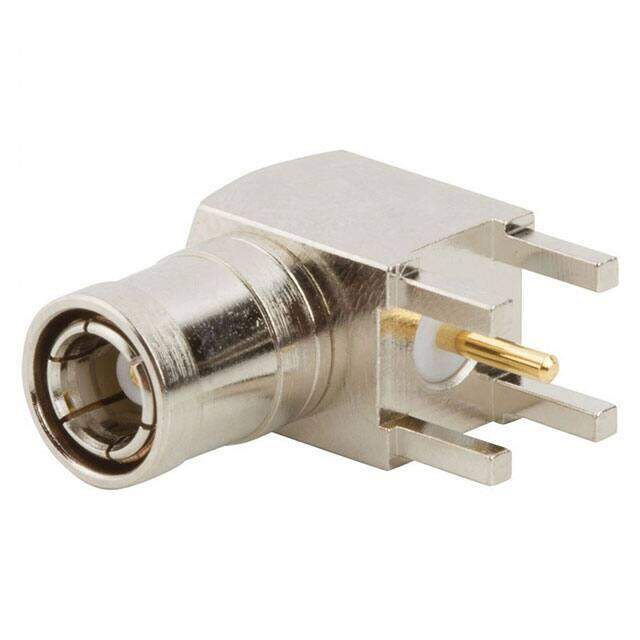

142140

Amphenol RF
RoHS
RoHS RoHS compliant
Package SMB
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description RF Connector SMB Right Angle PCB Plug Through Hole 50 Ohm
PDF
/
Buying Options
Total Price: USD $10.36
Unit Price: USD $10.3576
≥1 USD $10.3576
≥10 USD $9.32008
≥100 USD $8.779584
≥500 USD $8.55448
≥1000 USD $8.329376
≥3000 USD $7.428934
Inventory: 330
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Technical

Shield Termination Solder
Body Finish Nickel
Insertion Loss 0.6dB
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 4GHz
Body Plating Nickel
Number of Ports 1
Connector Style SMB
Impedance 50Ohm
Housing Color Silver
Frequency 4GHz
Orientation Right Angle
Fastening Type Snap-On
Voltage - Rated 335V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Plug, Female Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2001
Packaging Bulk
Operating Temperature -65°C~165°C

Physical

Center Contact Material Beryllium Copper
Center Contact Plating Gold
Body Material Brass
Weight 4.299999g
Dielectric Material Polytetrafluoroethylene (PTFE)
Package / Case SMB
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Brass, Copper

Supply Chain

Factory Lead Time 9 Weeks
