142136
RoHS
RoHS compliant
RoHS compliantPackage SMB
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

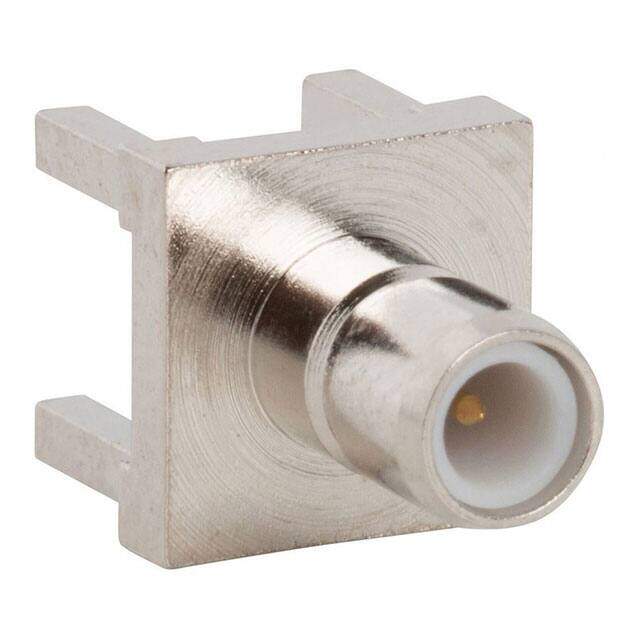

RF Connectors / Coaxial Connectors SMB PCB ST JACK NICKEL
PDF
/
Buying Options
Total Price: USD $3.89
Unit Price: USD $3.8896
≥1 USD $3.8896
≥10 USD $3.53056
≥100 USD $3.344
≥500 USD $3.266384
≥1000 USD $3.1108
≥3000 USD $2.721954
Inventory: 140
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Contact Material Brass, Copper
Contact Plating Gold
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case SMB
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 900.012311mg
Body Material Brass
Center Contact Plating Gold
Center Contact Material Brass
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2008
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Male Pin
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 335V
Fastening Type Snap-On
Orientation Straight
Frequency 4GHz
Housing Color Silver
Impedance 50Ohm
Connector Style SMB
Number of Ports 1
Body Plating Nickel
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Solder
Insertion Loss 0.3dB
Body Finish Nickel
Shield Termination Solder
Dimensions
Length 7.5mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
