142115
RoHS
RoHS compliant
RoHS compliantPackage SMB
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
Coaxial Connector
PDF
/
Buying Options
Total Price: USD $12.36
Unit Price: USD $12.3552
≥1 USD $12.3552
≥10 USD $10.94984
≥100 USD $10.529024
≥500 USD $10.107856
≥1000 USD $9.54624
≥3000 USD $8.703966
Inventory: 33
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass, Copper
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Package / Case SMB
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 8.000009g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Beryllium Copper
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2010
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 335V
Fastening Type Snap-On
Orientation Right Angle
Frequency 4GHz
Housing Color Gold
Impedance 75Ohm
Connector Style SMB
Number of Ports 1
Body Plating Gold
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Solder

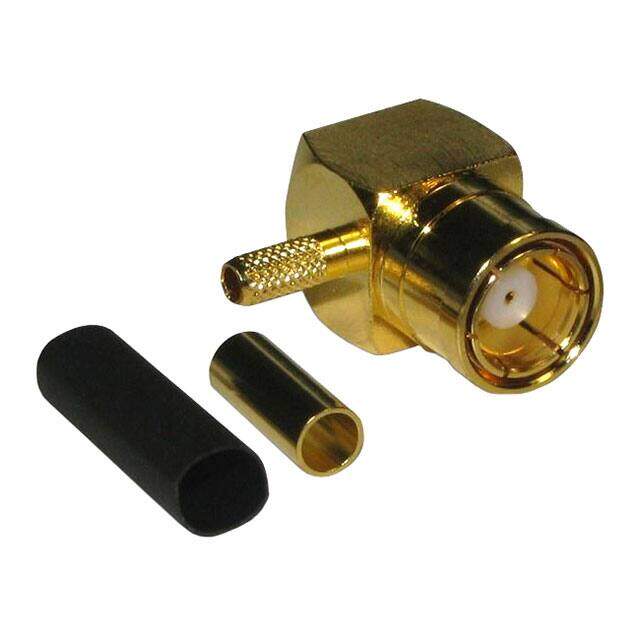

Includes 4 pcs - 1 Connector, 1 End Cap, 1 Ferrule, 1 Heat Shrink
Insertion Loss 0.6dB
Body Finish Gold
Cable Group RG-179, 179A, 179B, 187, 187A, Belden 9221, M17/94-RG179
Shield Termination Crimp
Dimensions
Length 15.9mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
