142103
RoHS
RoHS compliant
RoHS compliantPackage SMB
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
SMB Connector Plug, Female Socket 75 Ohm Free Hanging (In-Line) Solder
PDF
/
Buying Options
Total Price: USD $10.71
Unit Price: USD $10.7096
≥1 USD $10.7096
≥10 USD $9.4952
≥100 USD $9.129824
≥500 USD $8.764624
≥1000 USD $8.277632
≥3000 USD $7.547294
Inventory: 117
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 16mm
Technical
Shield Termination Crimp
Cable Group RG-179, 179A, 179B, 187, 187A, Belden 9221, M17/94-RG179
Body Finish Gold
Insertion Loss 0.3dB

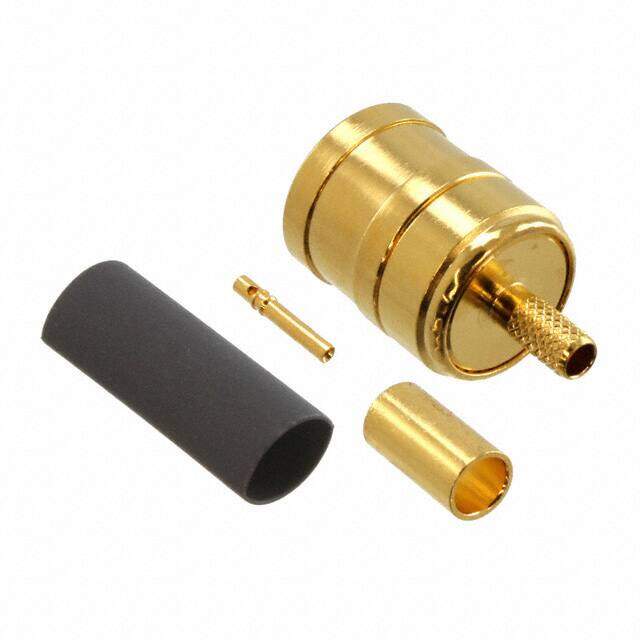

Includes 4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 4GHz
Body Plating Gold
Number of Ports 1
Connector Style SMB
Impedance 75Ohm
Housing Color Gold
Frequency 4GHz
Orientation Straight
Fastening Type Snap-On
Voltage - Rated 335V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Plug, Female Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2005
Packaging Bulk
Operating Temperature -65°C~165°C
Physical
Center Contact Material Beryllium Copper
Center Contact Plating Gold
Body Material Brass
Weight 3.70001g
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Package / Case SMB
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Brass, Copper
Supply Chain
Factory Lead Time 9 Weeks
