132344

Amphenol RF
RoHS
RoHS RoHS compliant
Package SMA
Category Connectors, Interconnects / Coaxial Connectors (RF)

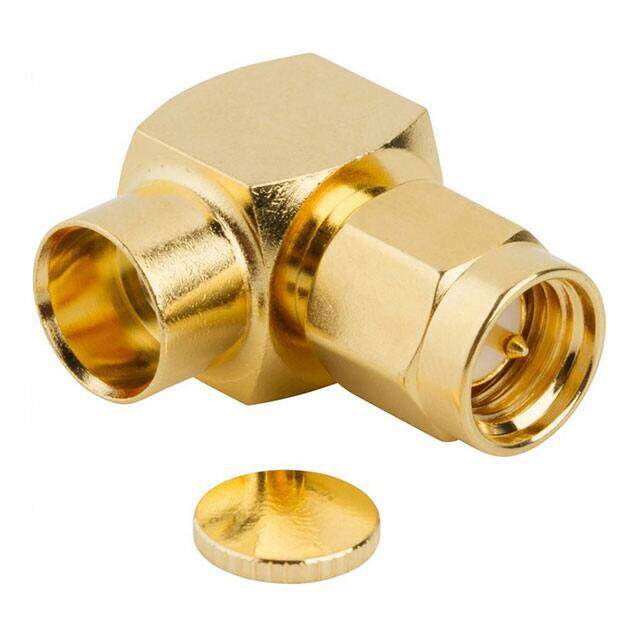

Description RF Connectors / Coaxial Connectors SMA RIGHT ANGLE PLG SOLDER .250 SEMI RIG
PDF
/
Buying Options
Total Price: USD $8.36
Unit Price: USD $8.359194
≥1 USD $8.359194
≥10 USD $7.886031
≥100 USD $7.43966
≥500 USD $7.018547
≥1000 USD $6.621267
Inventory: 5502
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Length 18.1mm

Technical

Shield Termination Solder
Cable Group RG-401 (.250 Semi Rigid)
Body Finish Gold
Includes 2 pcs - 1 Connector, 1 End Cap
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 18GHz
Body Plating Gold
Number of Ports 1
Connector Style SMA
Impedance 50Ohm
Housing Color Gold
Frequency 18GHz
Depth 8mm
Orientation Right Angle
Fastening Type Threaded
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Plug, Male Pin
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2002
Packaging Bulk
Operating Temperature -65°C~165°C

Physical

Center Contact Material Brass
Center Contact Plating Gold
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Package / Case SMA
Mounting Type Free Hanging (In-Line), Right Angle
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Brass

Supply Chain

Factory Lead Time 9 Weeks
