132299

Amphenol RF
RoHS
RoHS RoHS compliant
Package SMA
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description SMA Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line), Right Angle Solder
PDF
/
Buying Options
Total Price: USD $12
Unit Price: USD $12.0032
≥1 USD $12.0032
≥10 USD $10.64184
≥100 USD $10.232288
≥500 USD $9.823088
≥1000 USD $9.277312
≥3000 USD $8.45871
Inventory: 97
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Length 21.9202mm

Technical

Shield Termination Crimp
Cable Group Belden 9913, 9914, LMR-400
Body Finish Gold

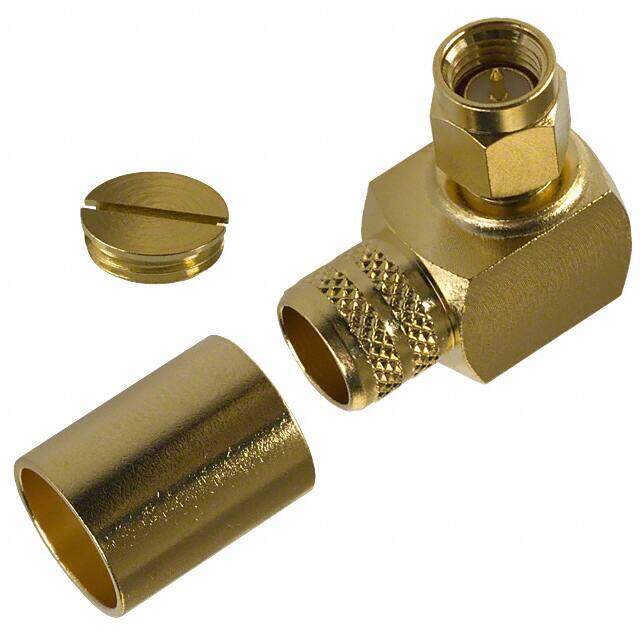

Includes 3 pcs - 1 Connector, 1 End Cap, 1 Ferrule
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 12.4GHz
Body Plating Gold
Number of Ports 1
Connector Style SMA
Impedance 50Ohm
Housing Color Gold
Frequency 12.4GHz
Orientation Right Angle
Fastening Type Threaded
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Plug, Male Pin
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2001
Packaging Bulk
Operating Temperature -65°C~165°C

Physical

Center Contact Material Brass
Center Contact Plating Gold
Body Material Brass
Weight 16.499989g
Dielectric Material Polytetrafluoroethylene (PTFE)
Package / Case SMA
Mounting Type Free Hanging (In-Line), Right Angle
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Brass

Supply Chain

Factory Lead Time 10 Weeks
