132298
RoHS
RoHS compliant
RoHS compliantPackage SMA
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

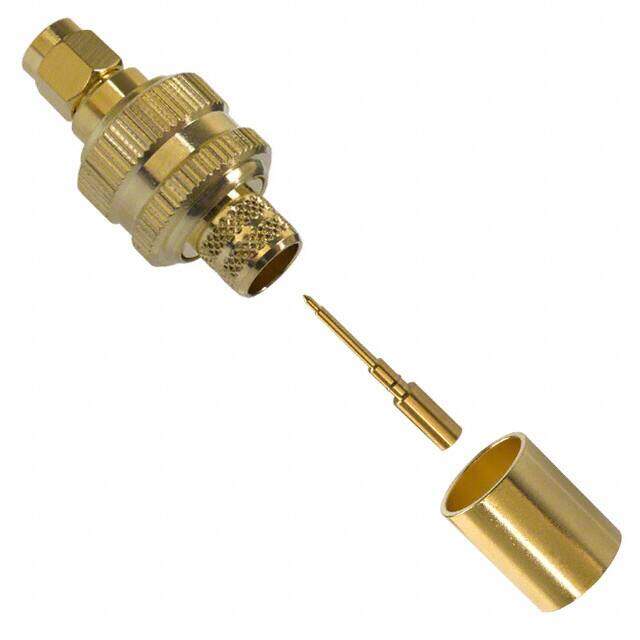

SMA Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line) Crimp
PDF
/
Buying Options
Total Price: USD $11.04
Unit Price: USD $11.044
≥1 USD $11.044
≥10 USD $9.7856
≥100 USD $9.409664
≥500 USD $9.0332
≥1000 USD $8.531424
≥3000 USD $7.77861
Inventory: 253
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Length 36.17mm
Technical
Shield Termination Crimp
Cable Group Belden 9913, 9914, LMR-400
Body Finish Gold
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Contact Termination Crimp
Mating Cycles 500
Frequency (Max) 12.4GHz
Body Plating Gold
Number of Ports 1
Connector Style SMA
Impedance 50Ohm
Housing Color Gold
Frequency 12.4GHz
Orientation Straight
Fastening Type Threaded
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Plug, Male Pin
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2001
Packaging Bulk
Operating Temperature -65°C~165°C
Physical
Center Contact Material Brass
Center Contact Plating Gold
Body Material Brass
Weight 30.299999g
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Package / Case SMA
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Brass
Supply Chain
Factory Lead Time 9 Weeks
