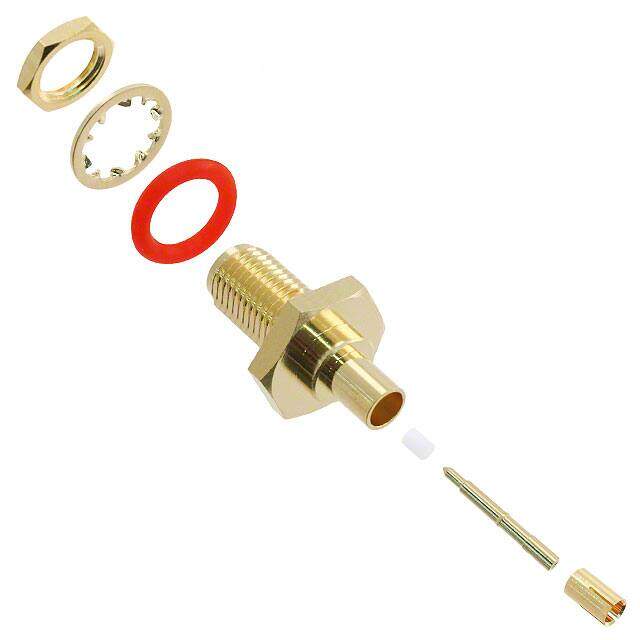

132286RP image
Favorite
132286RP image
Favorite

132286RP

Amphenol RF
RoHS
RoHS RoHS compliant
Package SMA
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description CONN RPSMA JACK STR 50OHM SOLDER
PDF
/
Buying Options
Total Price: USD $6.36
Unit Price: USD $6.3624
≥1 USD $6.3624
≥10 USD $5.75344
≥100 USD $5.435232
≥500 USD $5.30288
≥1000 USD $5.037648
≥3000 USD $4.507386
Inventory: 512
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Length 19.8mm

Technical

Shield Termination Crimp
VSWR 1.3
Cable Group RG-178, 178A, 178B, 196, 196A, M17/93-RG178
Includes 8 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Insulator, 1 Lockwasher, 1 Nut, 1 Sleeve
Insulator Color NATURAL
Contact Termination Solder
Mating Cycles 500
Number of Ports 1
Connector Style RP-SMA
Impedance 50Ohm
Contact Style COAX
Reliability COMMERCIAL
Frequency 12.4GHz
Depth 11mm
Orientation Straight
Total Number of Contacts 1
Fastening Type Threaded
Voltage - Rated 375V
Connector Type Jack, Male Pin
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2005
Packaging Bulk
Operating Temperature -65°C~165°C

Physical

Center Contact Plating Gold
Body Material Brass
Weight 5.280014g
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Mounting Feature Bulkhead - Front Side Nut
Package / Case SMA
Mounting Type Panel Mount
Mount Bulkhead, Front Side Nut, Panel

Supply Chain

Factory Lead Time 10 Weeks
