132286
RoHS
RoHS compliant
RoHS compliantPackage SMA
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
SMA Connector Jack, Female Socket 50 Ohm Panel Mount, Bulkhead - Front Side Nut Solder
PDF
/
Buying Options
Total Price: USD $7.74
Unit Price: USD $7.744
≥1 USD $7.744
≥10 USD $6.97048
≥100 USD $6.56656
≥500 USD $6.398128
≥1000 USD $6.229696
≥3000 USD $5.556232
Inventory: 722
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper
Contact Plating Gold
Mount Bulkhead, Front Side Nut, Panel
Mounting Type Panel Mount
Package / Case SMA
Mounting Feature Bulkhead - Front Side Nut
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 3.939988g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Beryllium Copper
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2005
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Jack, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Fastening Type Threaded
Orientation Straight
Depth 11mm
Frequency 12.4Hz
Housing Color Gold
Impedance 50Ohm
Connector Style SMA
Number of Ports 1
Body Plating Gold
Frequency (Max) 12.4GHz
Mating Cycles 500
Contact Termination Solder

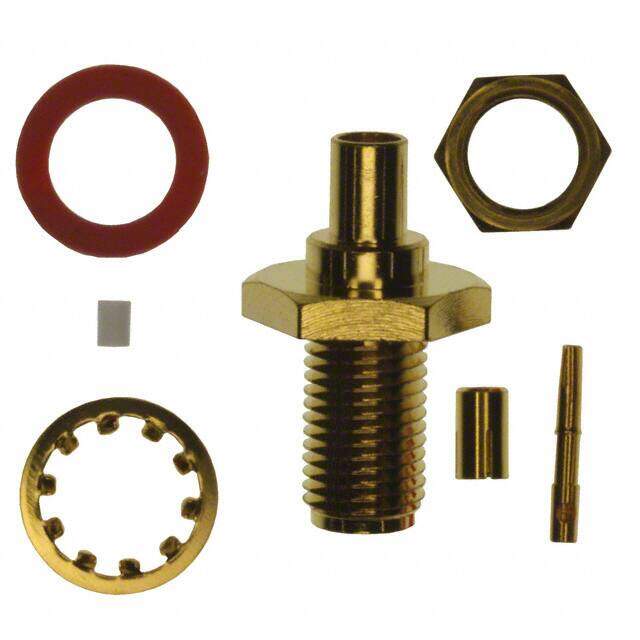

Includes 8 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Insulator, 1 Lockwasher, 1 Nut, 1 Sleeve
Body Finish Gold
Cable Group RG-178, 178A, 178B, 196, 196A, M17/93-RG178
Shield Termination Crimp
Dimensions
Length 17.7mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
