132284

Amphenol RF
RoHS
RoHS RoHS compliant
Package SMA
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description CONN SMA JACK STR 50 OHM SOLDER
PDF
/
Buying Options
Total Price: USD $9.61
Unit Price: USD $9.6096
≥1 USD $9.6096
≥10 USD $8.64952
≥100 USD $8.148096
≥500 USD $7.939184
≥1000 USD $7.73036
≥3000 USD $6.894624
Inventory: 271
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 8 Weeks

Physical

Contact Material Copper
Contact Plating Gold
Mount Bulkhead, Front Side Nut, Panel
Mounting Type Panel Mount
Package / Case SMA
Mounting Feature Bulkhead - Front Side Nut
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Center Contact Plating Gold
Center Contact Material Beryllium Copper

Technical

Operating Temperature -65°C~165°C
Packaging Bulk
Published 2001
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Jack, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 375V
Fastening Type Threaded
Orientation Straight
Depth 11mm
Frequency 12.4GHz
Housing Color Gold
Polarity Standard
Impedance 50Ohm
Connector Style SMA
Number of Ports 1
Body Plating Gold
Frequency (Max) 12.4GHz
Mating Cycles 500
Contact Termination Solder

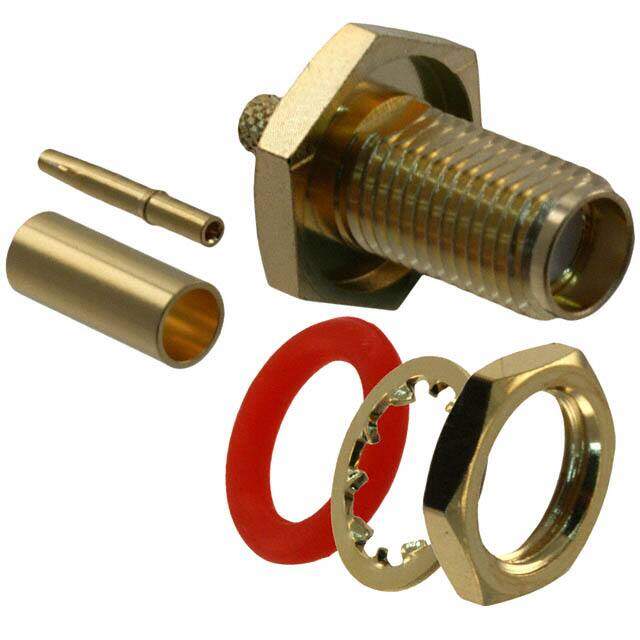

Includes 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut
Body Finish Gold
Cable Group RG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Shield Termination Crimp

Dimensions

Length 17.7mm

Compliance

Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
