132272 image
Favorite
132272 image
Favorite
RoHS
RoHS RoHS compliant
Package SMA
Category Connectors, Interconnects / Coaxial Connectors (RF)

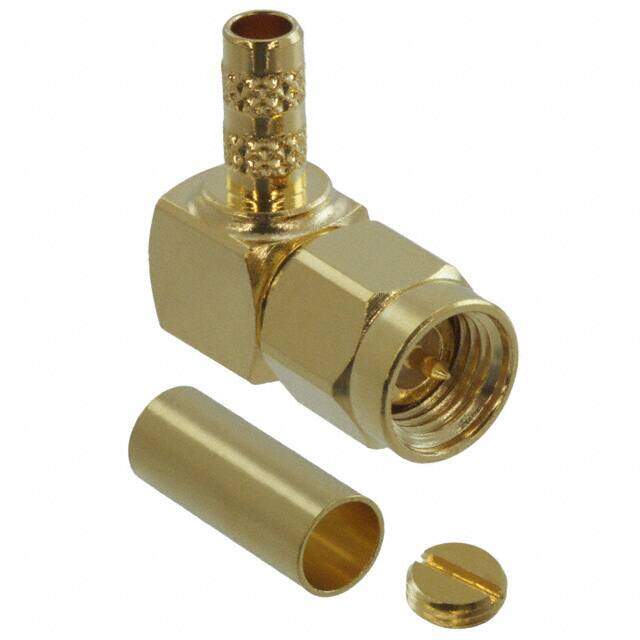

Description SMA Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line), Right Angle Solder
PDF
/
Inventory: 9427
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Technical

Shield Termination Crimp
Cable Group RG-122, 180, 180A, 180B, 195, Belden 1855, 1865A
Body Finish Gold
Includes 3 pcs - 1 Connector, 1 End Cap, 1 Ferrule
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 12.4GHz
Body Plating Gold
Number of Ports 1
Connector Style SMA
Impedance 50Ohm
Polarity Standard
Housing Color Gold
Frequency 12.4GHz
Orientation Right Angle
Fastening Type Threaded
Voltage - Rated 375V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Plug, Male Pin
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2003
Packaging Bulk
Operating Temperature -65°C~165°C

Physical

Center Contact Material Brass
Center Contact Plating Gold
Body Material Brass
Weight 5.700012g
Dielectric Material Polytetrafluoroethylene (PTFE)
Package / Case SMA
Mounting Type Free Hanging (In-Line), Right Angle
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Brass

Supply Chain

Factory Lead Time 8 Weeks
