132252

Amphenol RF
RoHS
RoHS RoHS compliant
Package SMA
Category Connectors, Interconnects / Coaxial Connectors (RF)

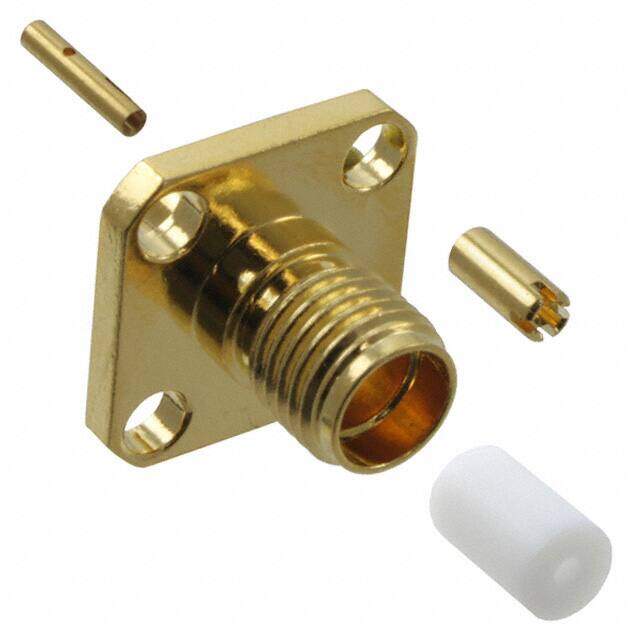

Description SMA Connector Jack, Female Socket 50 Ohm Panel Mount, Square Flange Solder
PDF
/
Buying Options
Total Price: USD $9.95
Unit Price: USD $9.9528
≥1 USD $9.9528
≥10 USD $8.96104
≥100 USD $8.441312
≥500 USD $8.224832
≥1000 USD $8.00844
≥3000 USD $7.14267
Inventory: 1174
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Technical

Shield Termination Solder
Cable Group 0.047 Semi Rigid
Body Finish Gold
Includes 5 pcs - 1 Connector, 1 Barrel, 1 Contact, 2 Insulators
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 18GHz
Body Plating Gold
Number of Ports 1
Connector Style SMA
Impedance 50Ohm
Housing Color Gold
Orientation Straight
Fastening Type Threaded
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Jack, Female Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2006
Packaging Bulk
Operating Temperature -65°C~165°C

Physical

Center Contact Material Beryllium Copper
Center Contact Plating Gold
Body Material Brass
Weight 3.113004g
Dielectric Material Polytetrafluoroethylene (PTFE)
Mounting Feature Flange
Package / Case SMA
Mounting Type Panel Mount
Mount Flanges, Panel
Contact Plating Gold
Contact Material Copper

Supply Chain

Factory Lead Time 9 Weeks
