132248
RoHS
RoHS compliant
RoHS compliantPackage SMA
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

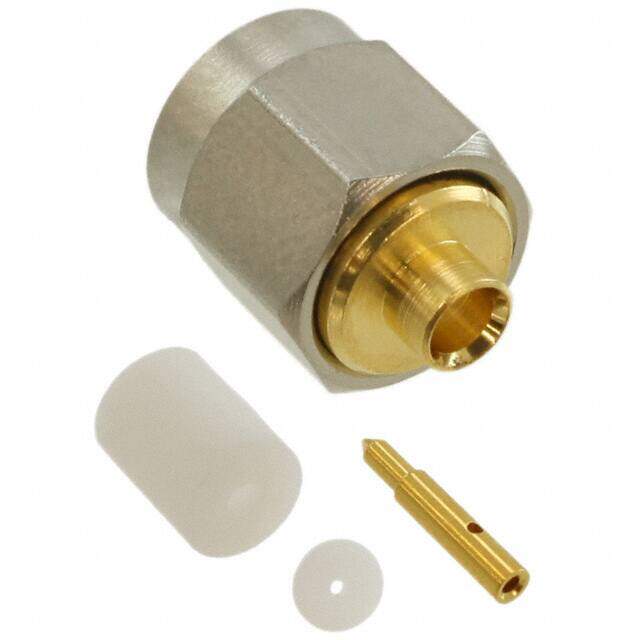

SMA Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line) Solder
PDF
/
Buying Options
Total Price: USD $7.66
Unit Price: USD $7.6648
≥1 USD $7.6648
≥10 USD $6.8992
≥100 USD $6.499328
≥500 USD $6.332656
≥1000 USD $6.166072
≥3000 USD $5.499446
Inventory: 129
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Brass, Copper
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Package / Case SMA
Insulation Material Teflon
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 6.000006g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Beryllium Copper
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2008
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pin
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Fastening Type Threaded
Orientation Straight
Depth 8mm
Frequency 18GHz
Housing Color Gold
Impedance 50Ohm
Connector Style SMA
Number of Ports 1
Body Plating Gold
Frequency (Max) 18GHz
Mating Cycles 500
Contact Termination Solder
Includes 2 pcs - 1 Connector, 1 Insulator
Body Finish Gold
Cable Group RG-405 (.085, .086 Semi Rigid)
Shield Termination Solder
Dimensions
Length 11.2mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
