132242
RoHS
RoHS compliant
RoHS compliantPackage SMA
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

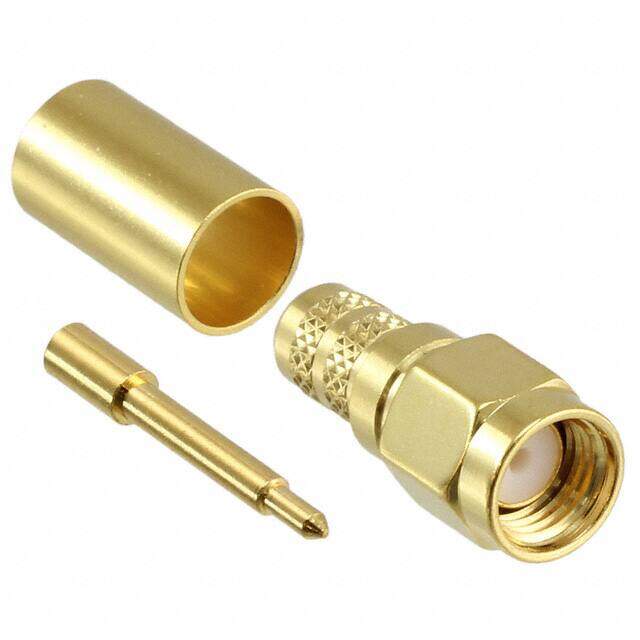

RF Connectors / Coaxial Connectors SMA STRAIGHT PLUG 180/U 195/U B8218
PDF
/
Buying Options
Total Price: USD $4.54
Unit Price: USD $4.5408
≥1 USD $4.5408
≥10 USD $4.12368
≥100 USD $3.90544
≥500 USD $3.814624
≥1000 USD $3.632904
≥3000 USD $3.178798
Inventory: 533
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Package / Case SMA
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 6.000006g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Brass
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2003
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pin
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 375V
Fastening Type Threaded
Orientation Straight
Frequency 12.4GHz
Housing Color Gold
Impedance 50Ohm
Connector Style SMA
Number of Ports 1
Body Plating Gold
Frequency (Max) 12.4GHz
Mating Cycles 500
Contact Termination Solder
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Body Finish Gold
Cable Group RG-122, 180, 180A, 180B, 195, Belden 1855, 1865A
Shield Termination Crimp
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
