132241

Amphenol RF
RoHS
RoHS RoHS compliant
Package SMA
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description SMA Connector Jack, Female Socket 50 Ohm Panel Mount, Bulkhead - Front Side Nut Solder
PDF
/
Buying Options
Total Price: USD $8.47
Unit Price: USD $8.4656
≥1 USD $8.4656
≥10 USD $7.61992
≥100 USD $7.177984
≥500 USD $6.993888
≥1000 USD $6.809792
≥3000 USD $6.07361
Inventory: 173
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No

Dimensions

Length 27.5mm

Technical

Shield Termination Crimp
Cable Group RG-8X, Belden 9258, LMR-240
Body Finish Gold

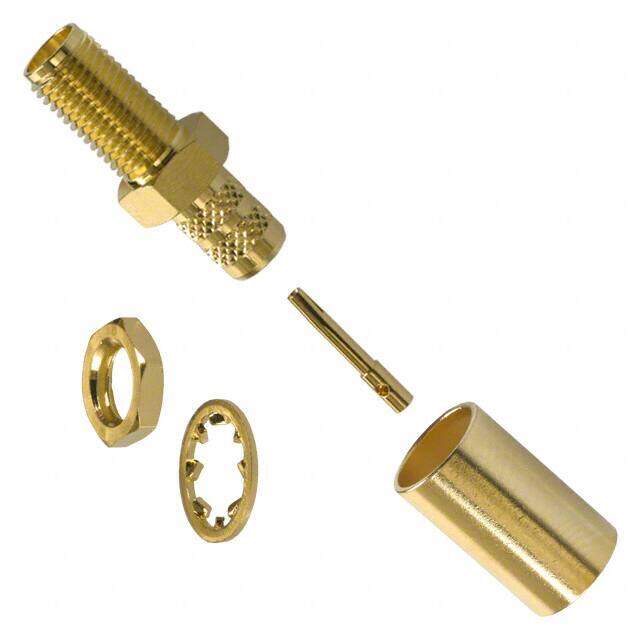

Includes 5 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 12.4GHz
Body Plating Gold
Number of Ports 1
Connector Style SMA
Impedance 50Ohm
Housing Color Gold
Frequency 12.4GHz
Orientation Straight
Fastening Type Threaded
Gender Female
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Jack, Female Socket
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2001
Packaging Bulk
Operating Temperature -65°C~165°C

Physical

Center Contact Material Beryllium Copper
Center Contact Plating Gold
Body Material Brass
Weight 4.899988g
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Teflon
Mounting Feature Bulkhead - Front Side Nut
Package / Case SMA
Mounting Type Panel Mount
Mount Bulkhead, Front Side Nut, Panel
Contact Plating Gold
Contact Material Copper

Supply Chain

Factory Lead Time 9 Weeks
