132240
RoHS
RoHS compliant
RoHS compliantPackage SMA
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
RF Connectors / Coaxial Connectors SMA ST JACK RG8X/ LMR240
PDF
/
Buying Options
Total Price: USD $8.54
Unit Price: USD $8.536
≥1 USD $8.536
≥10 USD $7.68504
≥100 USD $7.239584
≥500 USD $7.053904
≥1000 USD $6.868224
≥3000 USD $6.125706
Inventory: 196
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Technical
Shield Termination Crimp
Cable Group RG-8X, Belden 9258, LMR-240
Body Finish Gold

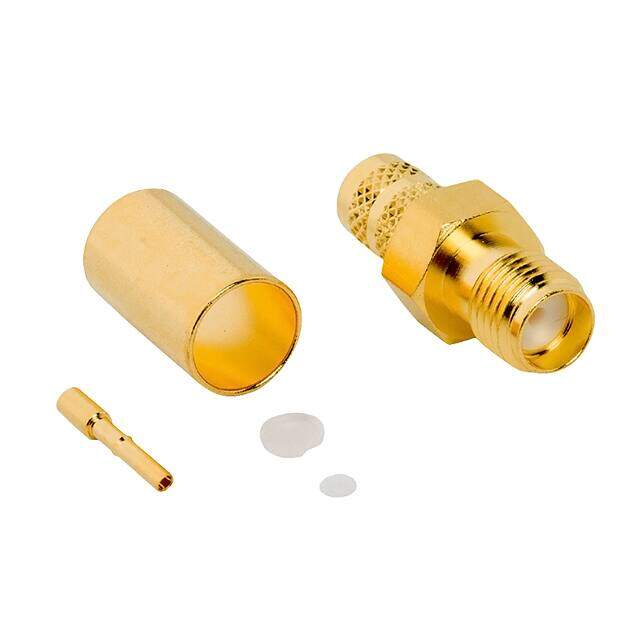

Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 12.4GHz
Body Plating Gold
Number of Ports 1
Connector Style SMA
Impedance 50Ohm
Housing Color Gold
Frequency 18GHz
Orientation Straight
Fastening Type Threaded
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Jack, Female Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2001
Packaging Bulk
Operating Temperature -65°C~165°C
Physical
Center Contact Material Beryllium Copper
Center Contact Plating Gold
Body Material Brass
Weight 5.599995g
Dielectric Material Polytetrafluoroethylene (PTFE)
Package / Case SMA
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Copper
Supply Chain
Factory Lead Time 9 Weeks
