132225
RoHS
RoHS compliant
RoHS compliantPackage SMA
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

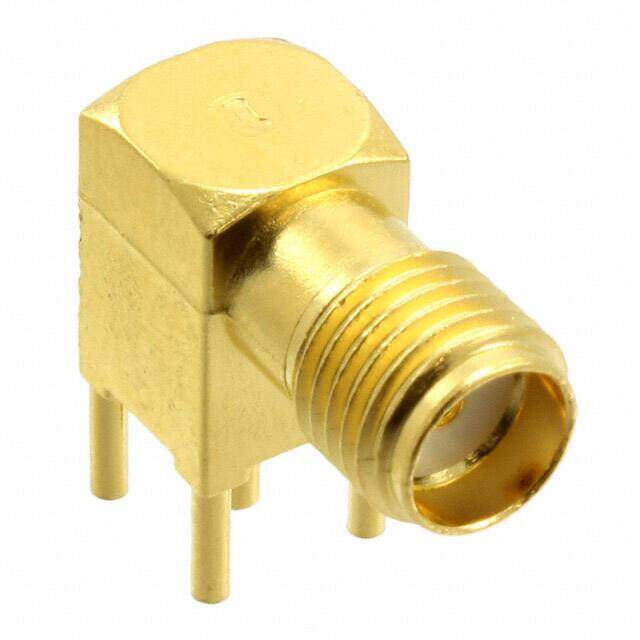

RF Connectors / Coaxial Connectors SMA R/A JACK PCB DIECAST
PDF
/
Buying Options
Total Price: USD $8.39
Unit Price: USD $8.3864
≥1 USD $8.3864
≥10 USD $7.54952
≥100 USD $7.11216
≥500 USD $6.929824
≥1000 USD $6.7474
≥3000 USD $6.017968
Inventory: 191
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Length 15.1mm
Technical
Shield Termination Solder
Body Finish Gold
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 11GHz
Body Plating Gold
Number of Ports 1
Connector Style SMA
Impedance 50Ohm
Housing Color Gold
Frequency 18GHz
Depth 7mm
Orientation Right Angle
Fastening Type Threaded
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Jack, Female Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2001
Packaging Bulk
Operating Temperature -65°C~165°C
Physical
Center Contact Material Beryllium Copper
Center Contact Plating Gold
Body Material Zinc Die Cast
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Package / Case SMA
Mounting Type Through Hole, Right Angle
Mount PCB, Through Hole
Contact Plating Gold
Contact Material Copper
Supply Chain
Factory Lead Time 9 Weeks
