132220

Amphenol RF
RoHS
RoHS RoHS compliant
Package SMA
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description RF Connectors / Coaxial Connectors SMA BULKHEAD CRIMP JACK RG-178, 196
PDF
/
Buying Options
Total Price: USD $7.71
Unit Price: USD $7.7088
≥1 USD $7.7088
≥10 USD $6.93528
≥100 USD $6.533472
≥500 USD $6.36592
≥1000 USD $6.198368
≥3000 USD $5.528274
Inventory: 46
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Contact Material Brass
Contact Plating Gold
Mount Bulkhead, Front Side Nut, Panel
Mounting Type Panel Mount
Package / Case SMA
Mounting Feature Bulkhead - Front Side Nut
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 4.500005g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Brass

Technical

Operating Temperature -65°C~165°C
Packaging Bulk
Published 2003
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Jack, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Fastening Type Threaded
Orientation Straight
Ingress Protection Weatherproof
Depth 8mm
Frequency 12.4GHz
Housing Color Gold
Polarity Standard
Impedance 50Ohm
Connector Style SMA
Number of Ports 1
Body Plating Gold
Frequency (Max) 12.4GHz
Mating Cycles 500
Contact Termination Solder

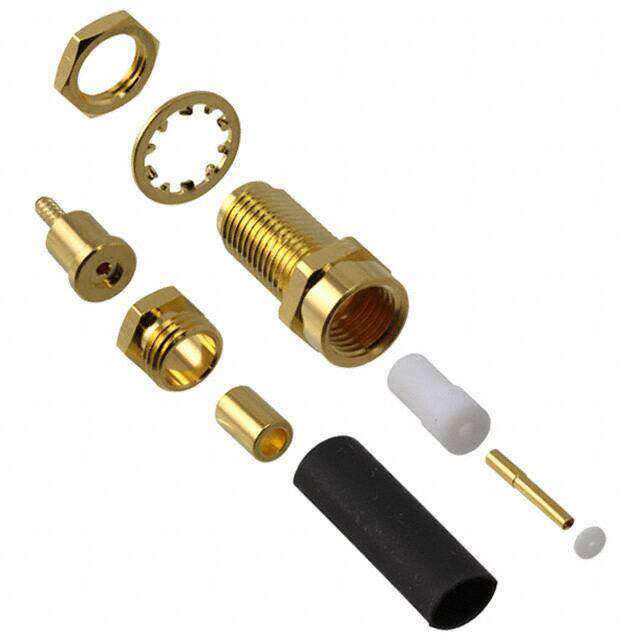

Includes 10 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 2 Insulators, 1 Lockwasher, 2 Nuts, 1 Rear Body
Body Finish Gold
Cable Group RG-178, 178A, 178B, 196, 196A, M17/93-RG178
Shield Termination Crimp

Dimensions

Length 16.3mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
