132188
RoHS
RoHS compliant
RoHS compliantPackage SMA
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
SMA Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line) Solder
PDF
/
Buying Options
Total Price: USD $7.06
Unit Price: USD $7.0576
≥1 USD $7.0576
≥10 USD $6.38528
≥100 USD $6.031872
≥500 USD $5.884912
≥1000 USD $5.59064
≥3000 USD $5.002131
Inventory: 143
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Length 11.2mm
Technical
Shield Termination Solder
Cable Group RG-405 (.085, .086 Semi Rigid)
Body Finish Gold

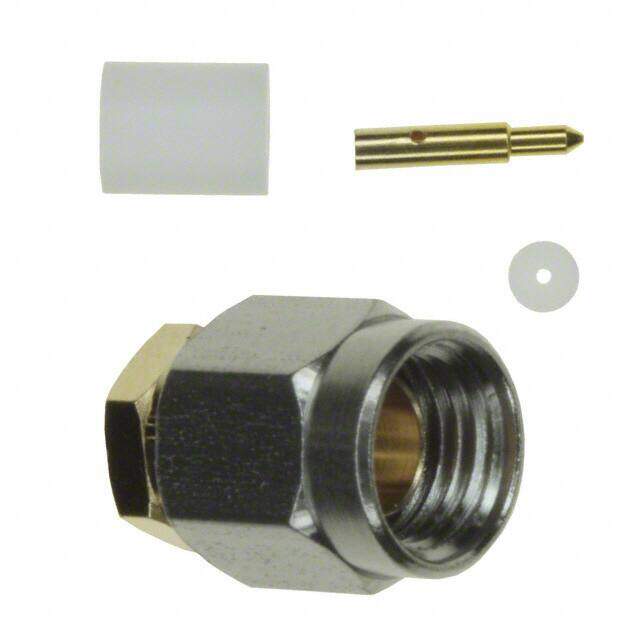

Includes 4 pcs - 1 Connector, 1 Contact, 1 Gasket, 1 Insulator
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 18GHz
Body Plating Gold
Number of Ports 1
Connector Style SMA
Impedance 50Ohm
Housing Color Gold, Silver
Frequency 18GHz
Depth 8mm
Orientation Straight
Fastening Type Threaded
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Plug, Male Pin
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2001
Packaging Bulk
Operating Temperature -65°C~165°C
Physical
Center Contact Material Brass
Center Contact Plating Gold
Body Material Brass, Stainless Steel
Weight 2.725013g
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Package / Case SMA
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Brass
Supply Chain
Factory Lead Time 9 Weeks
