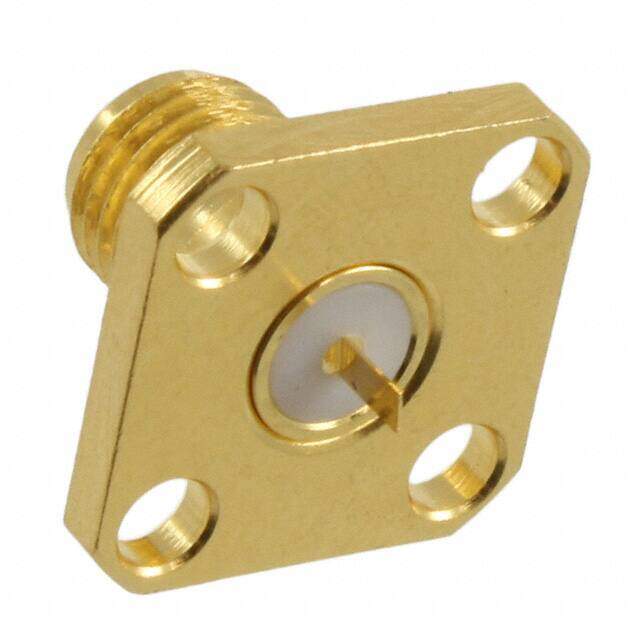

132166

Amphenol RF
RoHS
RoHS RoHS compliant
Package SMA
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description Conn SMA RCP 0Hz to 18GHz 50Ohm Solder ST Flange Mount Gold
PDF
/
Buying Options
Total Price: USD $10.94
Unit Price: USD $10.9384
≥1 USD $10.9384
≥10 USD $9.69936
≥100 USD $9.32624
≥500 USD $8.95312
≥1000 USD $8.455744
≥3000 USD $7.70968
Inventory: 1780
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No

Dimensions

Length 12.07mm

Technical

Shield Termination Solder
Body Finish Gold
Contact Termination Solder Tab
Mating Cycles 500
Frequency (Max) 12.4GHz
Body Plating Gold
Number of Ports 1
Connector Style SMA
Impedance 50Ohm
Housing Color Gold
Frequency 18GHz
Depth 12.7mm
Orientation Straight
Fastening Type Threaded
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Receptacle, Female Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2005
Packaging Bulk
Operating Temperature -65°C~165°C

Physical

Center Contact Material Beryllium Copper
Center Contact Plating Gold
Body Material Brass
Weight 4.568979g
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Mounting Feature Flange
Package / Case SMA
Mounting Type Panel Mount
Mount Bulkhead, Flanges, Panel
Contact Plating Gold
Contact Material Copper

Supply Chain

Factory Lead Time 8 Weeks
