132145
RoHS
RoHS compliant
RoHS compliantPackage SMA
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

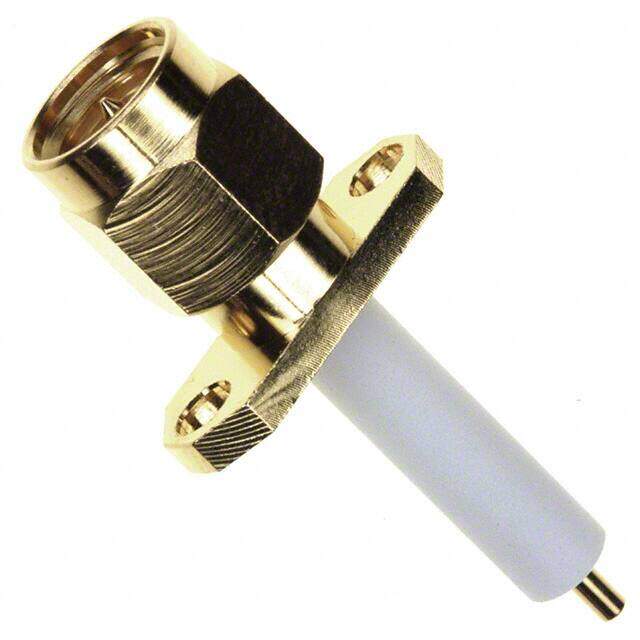

CONN SMA PLUG STR 50 OHM SOLDER
PDF
/
Buying Options
Total Price: USD $10.19
Unit Price: USD $10.1904
≥1 USD $10.1904
≥10 USD $9.17136
≥100 USD $8.639488
≥500 USD $8.417904
≥1000 USD $8.19632
≥3000 USD $7.310222
Inventory: 476
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Bulkhead, Flanges, Panel
Mounting Type Panel Mount
Package / Case SMA
Mounting Feature Flange
Insulation Material Teflon
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 4.080007g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Brass
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2001
Feature Extended Insulation
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pin
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Fastening Type Threaded
Orientation Straight
Depth 6mm
Frequency 18GHz
Housing Color Gold
Impedance 50Ohm
Connector Style SMA
Number of Ports 1
Body Plating Gold
Frequency (Max) 12.4GHz
Mating Cycles 500
Contact Termination Solder
Body Finish Gold
Shield Termination Solder
Dimensions
Length 30.8mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
