132144
RoHS
RoHS compliant
RoHS compliantPackage SMA
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

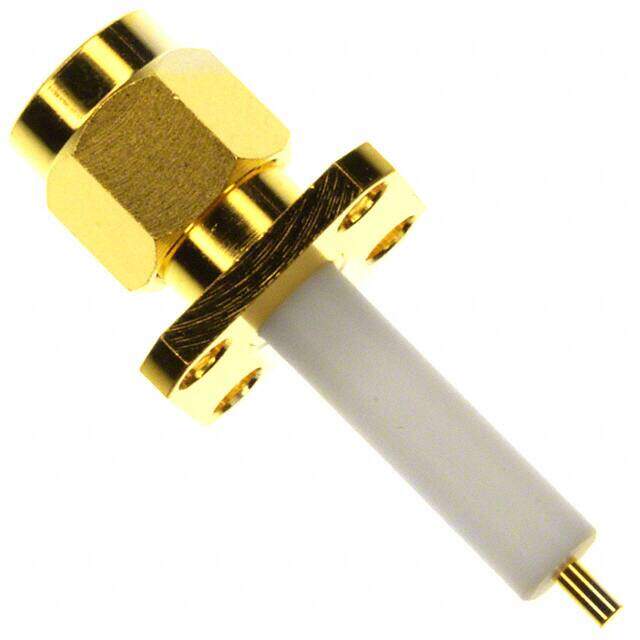

CONN SMA PLUG STR 50 OHM SOLDER
PDF
/
Buying Options
Total Price: USD $11.63
Unit Price: USD $11.6336
≥1 USD $11.6336
≥10 USD $10.3136
≥100 USD $9.916896
≥500 USD $9.520192
≥1000 USD $8.991224
≥3000 USD $8.197904
Inventory: 1069
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Brass, Copper
Contact Plating Gold
Mount Bulkhead, Flanges, Panel
Mounting Type Panel Mount
Package / Case SMA
Mounting Feature Flange
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 4.899988g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Beryllium Copper
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2001
Feature Extended Insulation
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pin
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Fastening Type Threaded
Orientation Straight
Depth 12.7mm
Frequency 18GHz
Housing Color Gold
Impedance 50Ohm
Connector Style SMA
Number of Ports 1
Body Plating Gold
Frequency (Max) 12.4GHz
Mating Cycles 500
Contact Termination Solder
Body Finish Gold
Shield Termination Solder
Dimensions
Length 30.8mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
