132143
RoHS
RoHS compliant
RoHS compliantPackage SMA
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

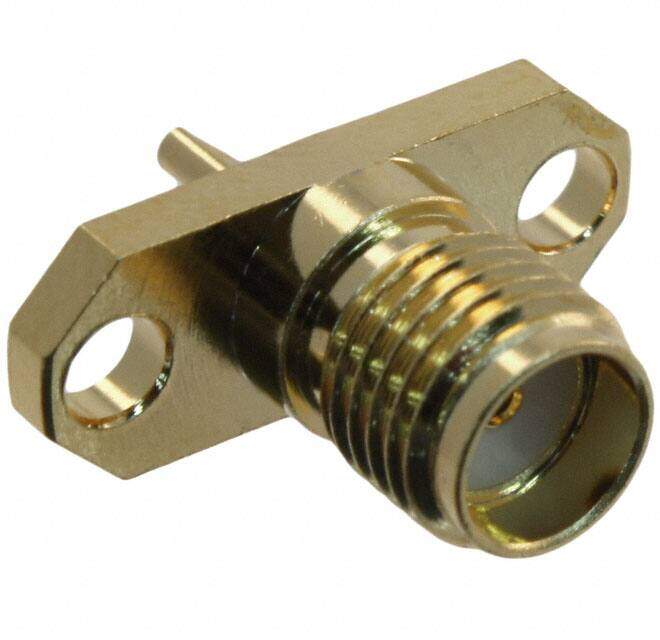

SMA Connector Receptacle, Female Socket 50 Ohm Panel Mount, Flange (2 Hole) Solder Cup
PDF
/
Buying Options
Total Price: USD $9.08
Unit Price: USD $9.0816
≥1 USD $9.0816
≥10 USD $8.17168
≥100 USD $7.69824
≥500 USD $7.500768
≥1000 USD $7.303296
≥3000 USD $6.51376
Inventory: 353
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Length 14.6mm
Technical
Shield Termination Solder
Body Finish Gold
Contact Termination Solder Cup
Mating Cycles 500
Frequency (Max) 12.4GHz
Body Plating Gold
Number of Ports 1
Connector Style SMA
Impedance 50Ohm
Housing Color Gold
Frequency 18GHz
Depth 6mm
Orientation Straight
Fastening Type Threaded
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Receptacle, Female Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2001
Packaging Bulk
Operating Temperature -65°C~165°C
Physical
Center Contact Material Beryllium Copper
Center Contact Plating Gold
Body Material Brass
Weight 1.879999g
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Mounting Feature Flange
Package / Case SMA
Mounting Type Panel Mount
Mount Bulkhead, Flanges, Panel
Contact Plating Gold
Contact Material Copper
Supply Chain
Factory Lead Time 8 Weeks
