132133
RoHS
RoHS compliant
RoHS compliantPackage SMA
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

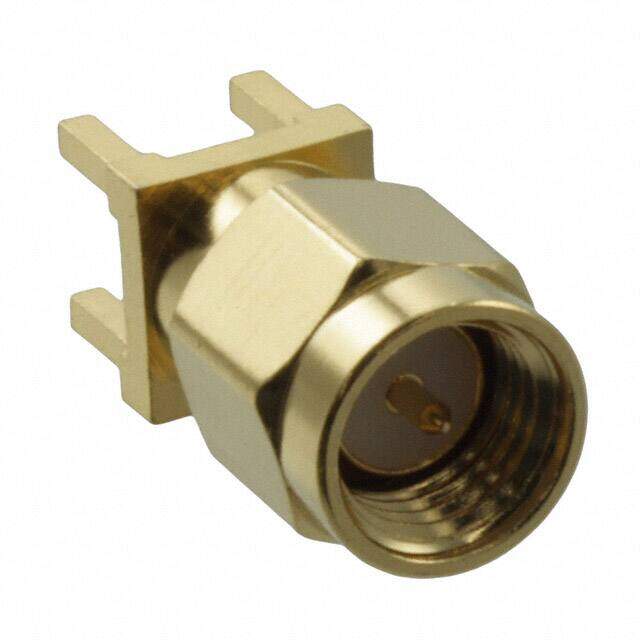

connector, rf coaxial, sma straight pcb receptacle plug, 4 legs
PDF
/
Buying Options
Total Price: USD $10.71
Unit Price: USD $10.7096
≥1 USD $10.7096
≥10 USD $9.63688
≥100 USD $9.078784
≥500 USD $8.84576
≥1000 USD $8.613088
≥3000 USD $7.681934
Inventory: 472
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Length 7mm
Technical
Shield Termination Solder
Body Finish Gold
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 18GHz
Body Plating Gold
Number of Ports 1
Connector Style SMA
Impedance 50Ohm
Housing Color Gold
Frequency 18GHz
Depth 7mm
Orientation Straight
Fastening Type Threaded
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Plug, Male Pin
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2001
Packaging Bulk
Operating Temperature -65°C~165°C
Physical
Center Contact Material Brass
Center Contact Plating Gold
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Teflon
Package / Case SMA
Mounting Type Through Hole
Mount PCB, Through Hole
Contact Plating Gold
Contact Material Brass
Supply Chain
Factory Lead Time 11 Weeks
