132109

Amphenol RF
RoHS
RoHS RoHS compliant
Package SMA
Category Connectors, Interconnects / Coaxial Connectors (RF)

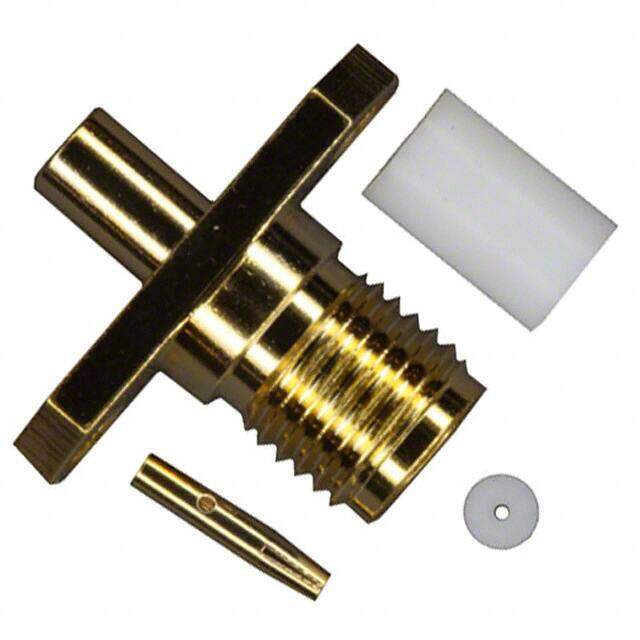

Description SMA Connector Jack, Female Socket 50 Ohm Panel Mount, Flange (2 Hole) Solder
PDF
/
Buying Options
Total Price: USD $8.69
Unit Price: USD $8.6944
≥1 USD $8.6944
≥10 USD $7.82848
≥100 USD $7.3744
≥500 USD $7.185376
≥1000 USD $6.996176
≥3000 USD $6.239878
Inventory: 1014
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Length 14.2mm

Technical

Shield Termination Solder
Cable Group RG-405 (.085, .086 Semi Rigid)
Body Finish Gold
Includes 4 pcs - 1 Connector, 1 Contact, 2 Insulators
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 18GHz
Body Plating Gold
Number of Ports 1
Connector Style SMA
Impedance 50Ohm
Housing Color Gold
Frequency 18GHz
Depth 6mm
Orientation Straight
Fastening Type Threaded
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Jack, Female Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2003
Packaging Bulk
Operating Temperature -65°C~165°C

Physical

Center Contact Material Beryllium Copper
Center Contact Plating Gold
Body Material Brass
Weight 2.099991g
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Mounting Feature Flange
Package / Case SMA
Mounting Type Panel Mount
Mount Bulkhead, Flanges, Panel
Contact Plating Gold
Contact Material Copper

Supply Chain

Factory Lead Time 9 Weeks
