132100
RoHS
RoHS compliant
RoHS compliantPackage SMA
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

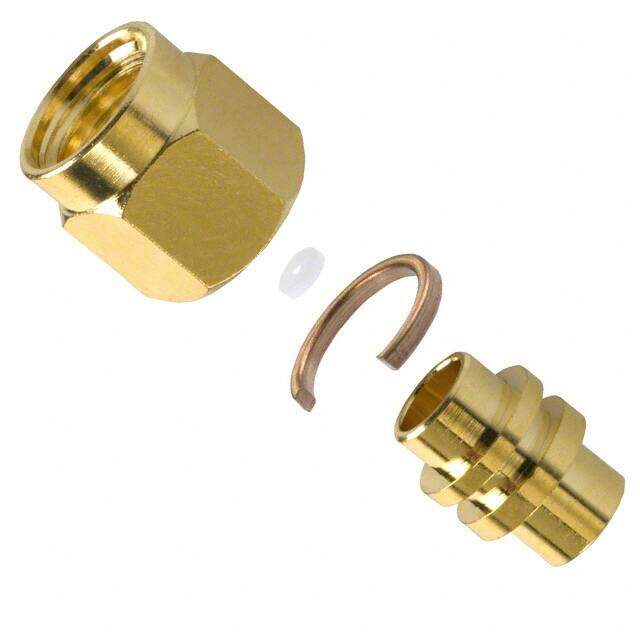

SMA Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line)
PDF
/
Buying Options
Total Price: USD $4.41
Unit Price: USD $4.4088
≥1 USD $4.4088
≥10 USD $4.00224
≥100 USD $3.790336
≥500 USD $3.702336
≥1000 USD $3.525984
≥3000 USD $3.085218
Inventory: 162
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Package / Case SMA
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 2.05999g
Body Material Brass
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2001
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pin
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Fastening Type Threaded
Orientation Straight
Ingress Protection Weatherproof
Depth 8mm
Frequency 18GHz
Housing Color Gold
Impedance 50Ohm
Connector Style SMA
Number of Ports 1
Body Plating Gold
Frequency (Max) 18GHz
Mating Cycles 500
Includes 4 pcs - 1 Connector, 1 Coupling Nut, 1 Gasket, 1 Ring
Body Finish Gold
Cable Group RG-402 (.141 Semi Rigid)
Shield Termination Solder
Dimensions
Length 8.6mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
