122500
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
CONN TNC JACK R/A 50OHM SOLDER
PDF
/
Buying Options
Total Price: USD $15
Unit Price: USD $15.004
≥1 USD $15.004
≥10 USD $13.2968
≥100 USD $12.785344
≥500 USD $12.273712
≥1000 USD $11.591888
≥3000 USD $10.56909
Inventory: 106
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Bronze
Contact Plating Gold
Mount Bulkhead, Panel
Mounting Type Panel Mount, Right Angle
Mounting Feature Bulkhead - Front Side Nut
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Center Contact Plating Gold
Center Contact Material Phosphor Bronze
Technical
Packaging Bulk
Published 2004
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Jack, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 500V
Fastening Type Threaded
Orientation Right Angle
Frequency 11GHz
Housing Color Silver
Polarity Standard
Impedance 50Ohm
Connector Style TNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 11GHz
Mating Cycles 500
Contact Termination Solder

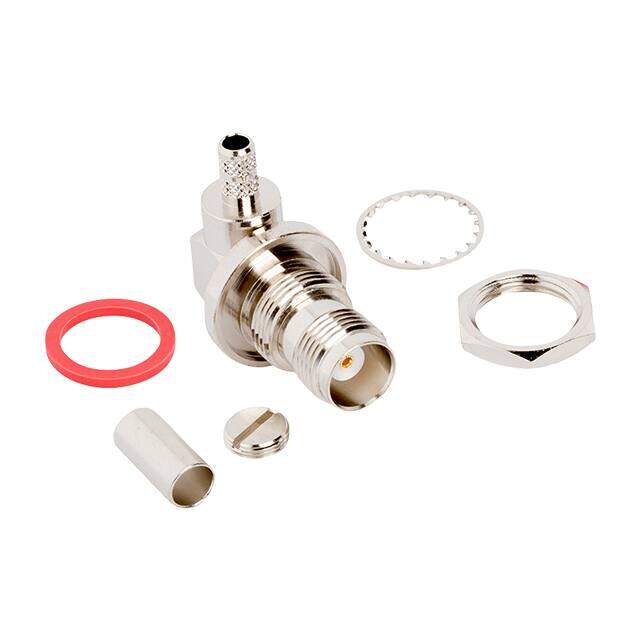

Includes 6 pcs - 1 Connector, 1 End Cap, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut
Insertion Loss 0.18dB
Body Finish Nickel
Cable Group RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Shield Termination Crimp
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
