122487
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
RF Connectors / Coaxial Connectors BLK JACK FRT MT 174/316U
PDF
/
Buying Options
Total Price: USD $10.57
Unit Price: USD $10.5688
≥1 USD $10.5688
≥10 USD $9.3676
≥100 USD $9.007328
≥500 USD $8.647056
≥1000 USD $8.166664
≥3000 USD $7.446094
Inventory: 54
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Shield Termination Crimp
Cable Group RG-174, 188A, 316
Body Finish Nickel
Insertion Loss 0.18dB

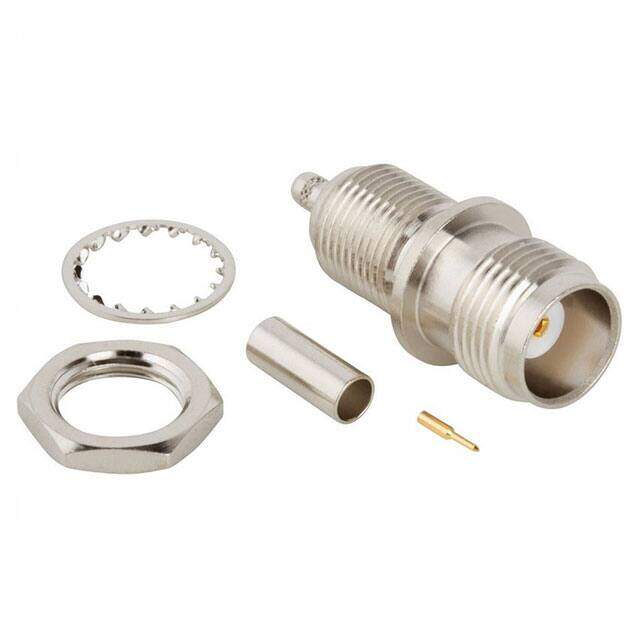

Includes 5 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut
Contact Termination Crimp
Mating Cycles 500
Frequency (Max) 11GHz
Body Plating Nickel
Number of Ports 1
Connector Style TNC
Impedance 50Ohm
Polarity Standard
Housing Color Silver
Fastening Type Threaded
Voltage - Rated 500V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Jack, Female Socket
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2002
Packaging Bulk
Physical
Center Contact Material Phosphor Bronze
Center Contact Plating Gold
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Mounting Feature Bulkhead - Rear Side Nut
Mounting Type Panel Mount
Mount Bulkhead, Panel, Rear Side Nut
Contact Plating Gold, Silver
Contact Material Bronze
Supply Chain
Factory Lead Time 9 Weeks
