122482
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
TNC Connector Jack, Female Socket 50 Ohm Free Hanging (In-Line) Crimp
PDF
/
Buying Options
Total Price: USD $11.15
Unit Price: USD $11.1496
≥1 USD $11.1496
≥10 USD $9.87888
≥100 USD $9.499072
≥500 USD $9.119088
≥1000 USD $8.612472
≥3000 USD $7.85253
Inventory: 155
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Bronze
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 20.505267g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Phosphor Bronze
Technical
Packaging Bulk
Published 2005
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Jack, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 500V
Fastening Type Threaded
Total Number of Contacts 1
Orientation Straight
Frequency 11GHz
Reliability COMMERCIAL
Housing Color Silver
Contact Style COAX
Impedance 50Ohm
Connector Style TNC
Number of Ports 1
Mating Cycles 500
Contact Termination Crimp
Insulator Color NATURAL

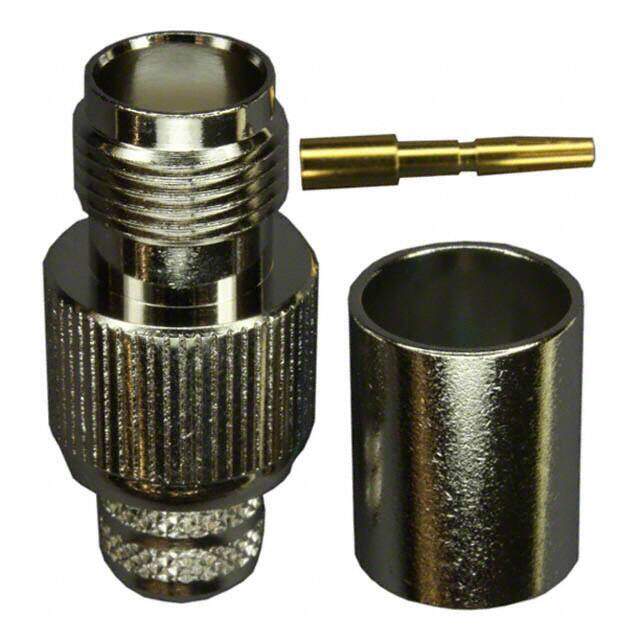

Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Insertion Loss 0.18dB
Body Finish Nickel
Cable Group RG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, 393
Dimensions
Length 30.4mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
