122479
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
CONN TNC JACK STR 50OHM CRIMP
PDF
/
Buying Options
Total Price: USD $10.25
Unit Price: USD $10.252
≥1 USD $10.252
≥10 USD $9.22944
≥100 USD $8.694752
≥500 USD $8.47176
≥1000 USD $8.248768
≥3000 USD $7.357002
Inventory: 111
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Length 33.3mm
Technical
Shield Termination Crimp
Cable Group RG-55, 142, 223, 400
Body Finish Nickel
Insertion Loss 0.18dB

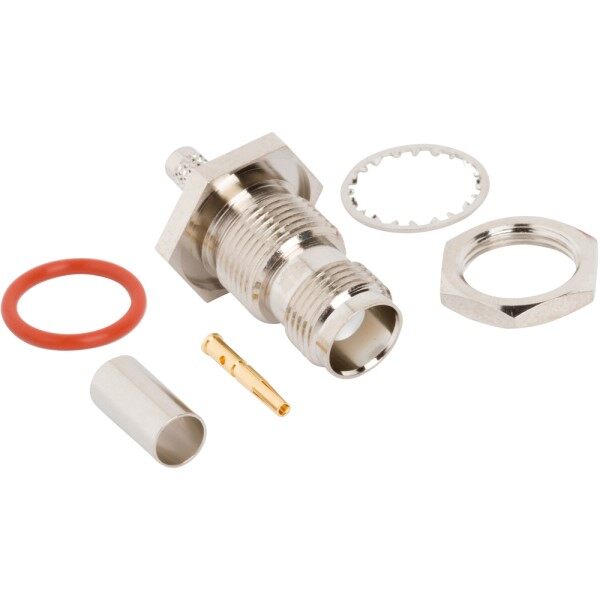

Includes 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut
Contact Termination Crimp
Mating Cycles 500
Frequency (Max) 11GHz
Body Plating Nickel
Number of Ports 1
Connector Style TNC
Impedance 50Ohm
Housing Color Silver
Depth 17.5mm
Orientation Straight
Fastening Type Threaded
Voltage - Rated 500V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Jack, Female Socket
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2005
Packaging Bulk
Physical
Center Contact Material Phosphor Bronze
Center Contact Plating Gold
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount
Mount Bulkhead, Front Side Nut, Panel
Contact Plating Gold
Contact Material Bronze
Supply Chain
Factory Lead Time 9 Weeks
