122462
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

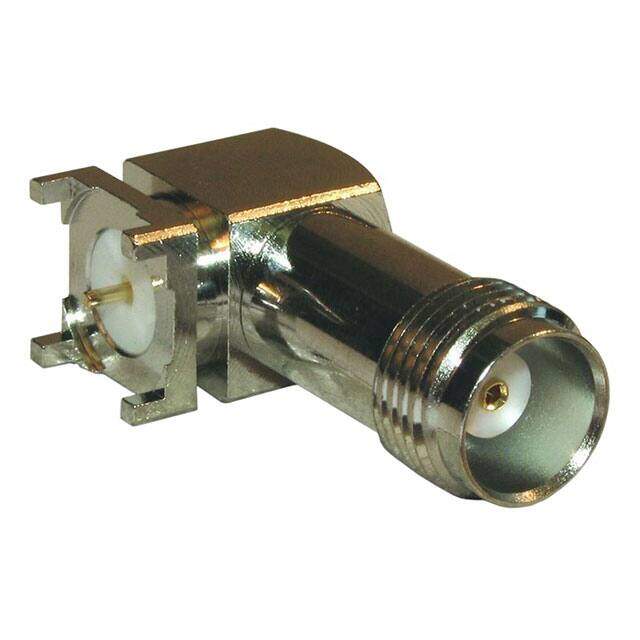

Connector; RF; TNC Right Angle PCB JackThrough Hole 50 Ohm
PDF
/
Buying Options
Total Price: USD $12.76
Unit Price: USD $12.762892
≥1 USD $12.762892
≥10 USD $12.040466
≥100 USD $11.358926
≥500 USD $10.715973
≥1000 USD $10.109401
Inventory: 1978
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Bronze
Contact Plating Gold
Mount PCB, Through Hole
Mounting Type Through Hole, Right Angle
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 21.141997g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Phosphor Bronze
Technical
Packaging Bulk
Published 2006
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 500V
Fastening Type Threaded
Orientation Right Angle
Frequency 11GHz
Housing Color Silver
Impedance 50Ohm
Connector Style TNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 11GHz
Mating Cycles 500
Contact Termination Solder
Insertion Loss 0.18dB
Body Finish Nickel
Shield Termination Solder
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
