122443
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

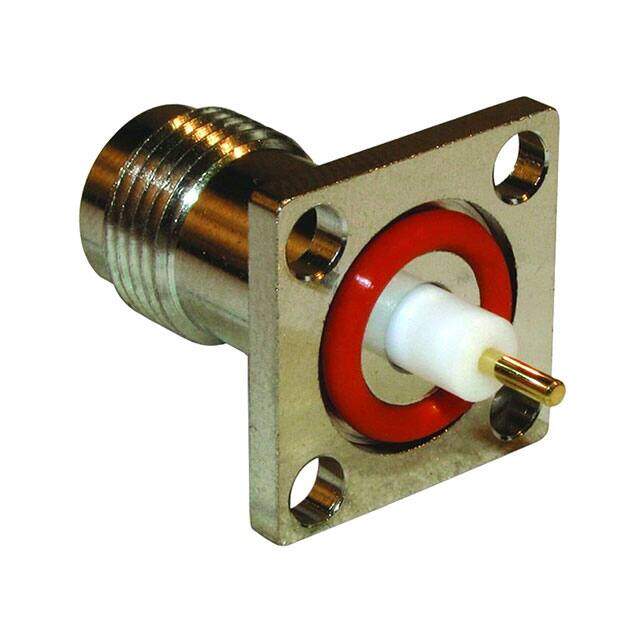

RF Connectors / Coaxial Connectors TNC PANEL RECPT EX TEF O-RING
PDF
/
Buying Options
Total Price: USD $19.55
Unit Price: USD $19.5536
≥1 USD $19.5536
≥10 USD $18.46416
≥100 USD $17.37824
≥500 USD $16.834752
Inventory: 92
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Brass, Bronze
Mount Bulkhead, Flanges, Panel
Mounting Type Panel Mount
Mounting Feature Flange
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 10.000011g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Phosphor Bronze
Technical
Packaging Bulk
Published 2005
JESD-609 Code e3
Feature Extended Insulation
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Receptacle, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Number of Rows 2
Voltage - Rated 500V
Additional Feature POLARIZED
Fastening Type Threaded
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 120
Orientation Straight
Terminal Pitch 0.8mm
Frequency 11GHz
UL Flammability Code 94V-0
Housing Color Silver
Body/Shell Style PLUG
Termination Type SURFACE MOUNT
Impedance 50Ohm
Connector Style TNC
Number of Ports 1
Mating Cycles 500
Contact Termination Solder
Insertion Loss 0.18dB
Body Finish Nickel
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
