122423

Amphenol RF
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Coaxial Connectors (RF)

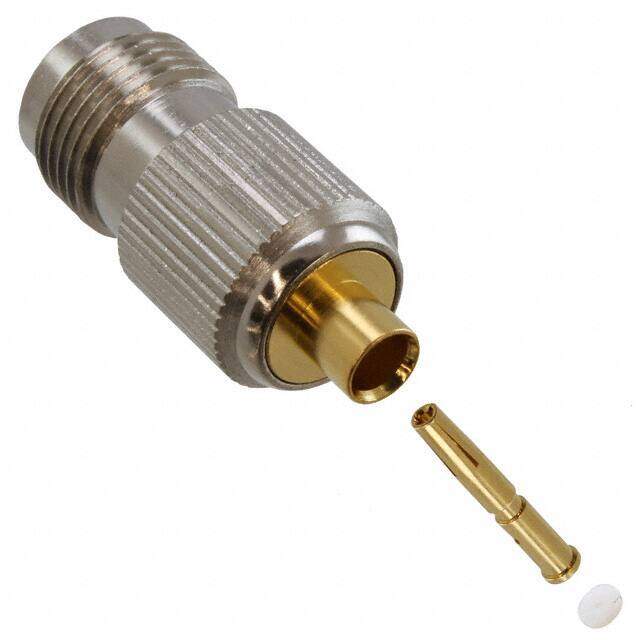

Description TNC Connector Jack, Female Socket 50 Ohm Free Hanging (In-Line) Solder
PDF
/
Buying Options
Total Price: USD $5.51
Unit Price: USD $5.513466
≥1 USD $5.513466
≥10 USD $5.201381
≥100 USD $4.906968
≥500 USD $4.629204
≥1000 USD $4.367181
Inventory: 8824
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Length 26.9mm

Technical

Shield Termination Solder
Cable Group RG-402 (.141 Semi Rigid)
Body Finish Nickel
Insertion Loss 0.18dB
Includes 3 pcs - 1 Connector, 1 Contact, 1 Insulator
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 11GHz
Body Plating Nickel
Number of Ports 1
Connector Style TNC
Impedance 50Ohm
Polarity Standard
Housing Color Silver
Frequency 11GHz
Orientation Straight
Fastening Type Threaded
Voltage - Rated 500V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Jack, Female Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2009
Packaging Bulk

Physical

Center Contact Material Phosphor Bronze
Center Contact Plating Gold
Body Material Brass
Weight 1.000001g
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Bronze

Supply Chain

Factory Lead Time 8 Weeks
