122422

Amphenol RF
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Coaxial Connectors (RF)

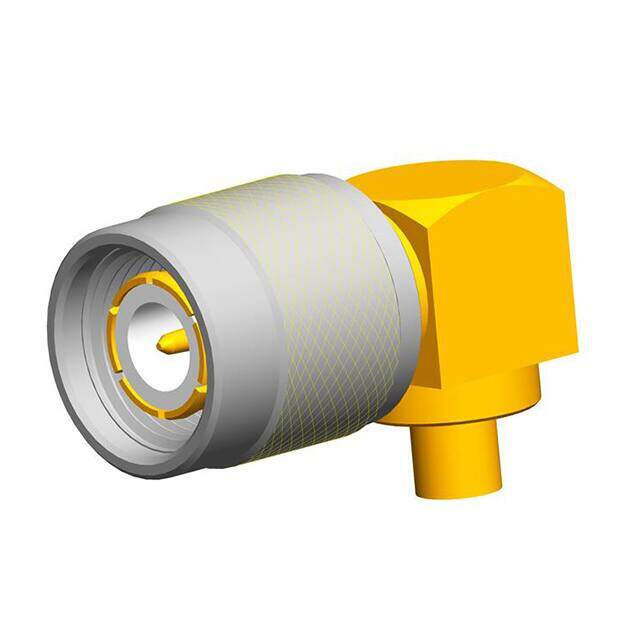

Description RF Connectors / Coaxial Connectors TNC R/A PLUG SOLDER .141 SEMI RIGID
PDF
/
Buying Options
Total Price: USD $10.23
Unit Price: USD $10.2344
≥1 USD $10.2344
≥10 USD $9.21008
≥100 USD $8.676448
≥500 USD $8.453984
≥1000 USD $8.23152
≥3000 USD $7.341602
Inventory: 155
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Length 26.5mm

Technical

Shield Termination Solder
Cable Group RG-402 (.141 Semi Rigid)
Body Finish Gold; Nickel
Insertion Loss 0.18dB
Includes 2 pcs - 1 Connector, 1 End Cap
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 11GHz
Body Plating Gold
Number of Ports 1
Connector Style TNC
Impedance 50Ohm
Housing Color Gold, Silver
Frequency 11GHz
Orientation Right Angle
Fastening Type Threaded
Voltage - Rated 500V
Gender Male
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Plug, Male Pin
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2004
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Center Contact Material Brass
Center Contact Plating Gold
Body Material Brass
Weight 20.427986g
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Mounting Type Free Hanging (In-Line), Right Angle
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Brass

Supply Chain

Factory Lead Time 10 Weeks
