122410
RoHS
RoHS compliant
RoHS compliantPackage 200
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

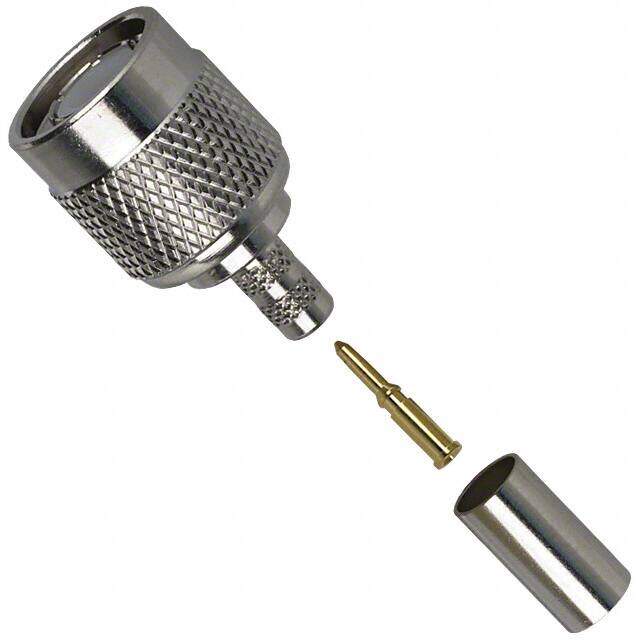

TNC Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line) Crimp
PDF
/
Buying Options
Total Price: USD $3.06
Unit Price: USD $3.0624
≥1 USD $3.0624
≥10 USD $2.77816
≥100 USD $2.6312
≥500 USD $2.569952
≥1000 USD $2.447632
≥3000 USD $2.141656
Inventory: 91
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Bulkhead, Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Package / Case 200
Dielectric Material Polyoxymethylene (POM) Acetal
Weight 12.38001g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Brass
Technical
Packaging Bulk
Published 2001
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Plug, Male Pin
Max Operating Temperature 155°C
Min Operating Temperature -40°C
Voltage - Rated 500V
Fastening Type Threaded
Orientation Straight
Frequency 11GHz
Housing Color Silver
Impedance 50Ohm
Connector Style TNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 11GHz
Mating Cycles 500
Contact Termination Crimp
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Insertion Loss 0.18dB
Body Finish Nickel
Cable Group Belden 7807A, LMR-200
Shield Termination Crimp
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
