122409RP
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

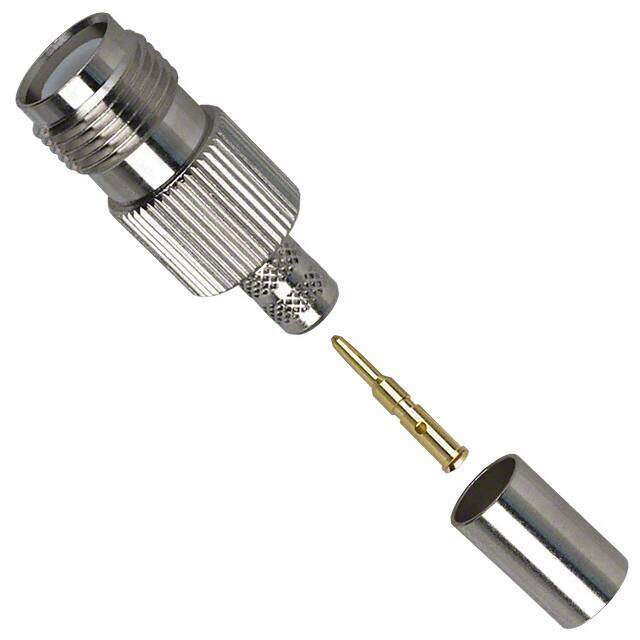

RP-TNC Connector Jack, Male Pin 50 Ohm Free Hanging (In-Line) Solder
PDF
/
Buying Options
Total Price: USD $4.71
Unit Price: USD $4.708
≥1 USD $4.708
≥10 USD $4.27768
≥100 USD $4.051168
≥500 USD $3.957008
≥1000 USD $3.768512
≥3000 USD $3.297448
Inventory: 197
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Bronze
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 11.100001g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Phosphor Bronze
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2005
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Jack, Male Pin
Gender Male
Voltage - Rated 500V
Fastening Type Threaded
Subcategory Other RF Connectors
Total Number of Contacts 1
Orientation Straight
Frequency 11GHz
Reliability COMMERCIAL
Housing Color Silver
Polarity Reverse
Contact Style COAX
Impedance 50Ohm
Connector Style RP-TNC
Number of Ports 1
Mating Cycles 500
Contact Termination Solder
Insulator Color NATURAL
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Insertion Loss 0.18dB
Body Finish Nickel
Cable Group RG-8X, Belden 9258, LMR-240
Shield Termination Crimp
Dimensions
Length 28.8mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
