122408
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

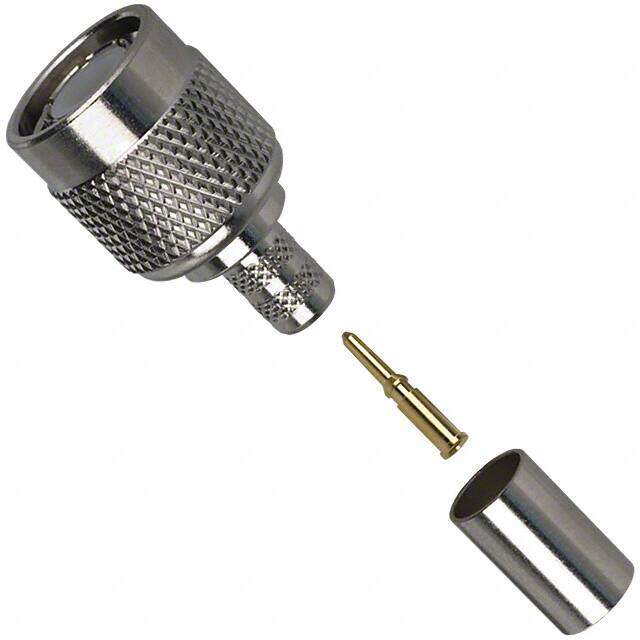

TNC Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line) Crimp
PDF
/
Buying Options
Total Price: USD $3.92
Unit Price: USD $3.916
≥1 USD $3.916
≥10 USD $3.5552
≥100 USD $3.367232
≥500 USD $3.288912
≥1000 USD $3.132272
≥3000 USD $2.740734
Inventory: 640
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Bulkhead, Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Dielectric Material Polyoxymethylene (POM) Acetal
Weight 13.999987g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Brass
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2001
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Plug, Male Pin
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Gender Female
Voltage - Rated 500V
Fastening Type Threaded
Orientation Straight
Frequency 11GHz
Housing Color Silver
Impedance 50Ohm
Connector Style TNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 11GHz
Mating Cycles 500
Contact Termination Crimp
Includes 4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Spacer
Insertion Loss 0.18dB
Body Finish Nickel
Cable Group RG-8X, Belden 9258, LMR-240
Shield Termination Crimp
Dimensions
Length 25mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
