122407

Amphenol RF
RoHS
RoHS RoHS compliant
Package 316
Category Connectors, Interconnects / Coaxial Connectors (RF)

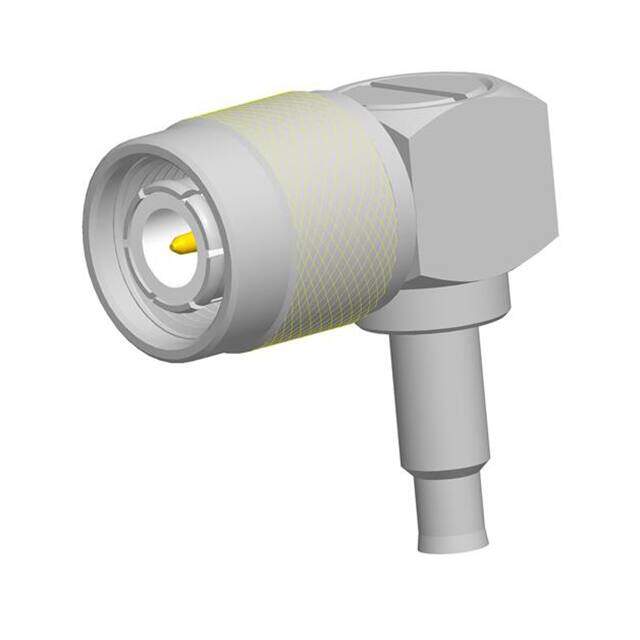

Description RF Connectors / Coaxial Connectors TNC R/A CRIMP PLUG 316 DOUBLE BRAID
PDF
/
Buying Options
Total Price: USD $7.56
Unit Price: USD $7.5592
≥1 USD $7.5592
≥10 USD $6.8376
≥100 USD $6.459552
≥500 USD $6.302032
≥1000 USD $5.986904
≥3000 USD $5.356736
Inventory: 191
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Contact Material Brass
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Package / Case 316
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 21.820004g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Brass

Technical

Packaging Bulk
Published 2006
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pin
Max Operating Temperature 155°C
Min Operating Temperature -40°C
Voltage - Rated 500V
Fastening Type Threaded
Orientation Right Angle
Frequency 11GHz
Housing Color Silver
Impedance 50Ohm
Connector Style TNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 11GHz
Mating Cycles 500
Contact Termination Solder
Includes 3 pcs - 1 Connector, 1 End Cap, 1 Ferrule
Insertion Loss 0.18dB
Body Finish Nickel
Cable Group RG-179, 188, 316 Double Braid, M17/152-RD316
Shield Termination Crimp

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
