RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description RF Connectors / Coaxial Connectors TNC BULKHEAD JACK 178/196 6.5 PANEL
PDF
/
Buying Options
Total Price: USD $5.59
Unit Price: USD $5.588
≥1 USD $5.588
≥10 USD $5.05296
≥100 USD $4.773824
≥500 USD $4.657312
≥1000 USD $4.424464
≥3000 USD $3.958706
Inventory: 76
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Length 29.2mm

Technical

Shield Termination Crimp
Cable Group RG-178, 178A, 178B, 196, 196A, M17/93-RG178
Body Finish Nickel
Insertion Loss 0.18dB

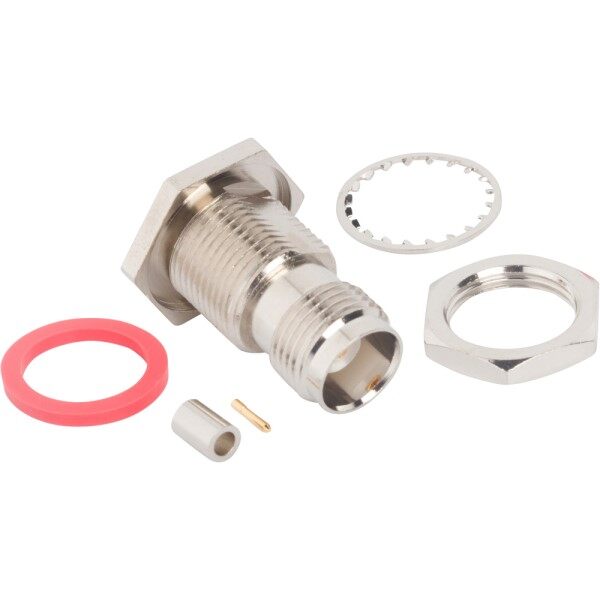

Includes 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut
Contact Termination Crimp
Mating Cycles 500
Frequency (Max) 11GHz
Body Plating Nickel
Number of Ports 1
Connector Style TNC
Impedance 50Ohm
Housing Color Silver
Frequency 11GHz
Orientation Straight
Fastening Type Threaded
Voltage - Rated 500V
Min Operating Temperature -40°C
Max Operating Temperature 155°C
Connector Type Jack, Female Socket
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2004
Packaging Bulk

Physical

Center Contact Material Phosphor Bronze
Center Contact Plating Gold
Body Material Brass
Dielectric Material Polyoxymethylene (POM) Acetal
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount
Mount Bulkhead, Cable, Front Side Nut, Panel
Contact Plating Gold
Contact Material Bronze

Supply Chain

Factory Lead Time 9 Weeks
