122397
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

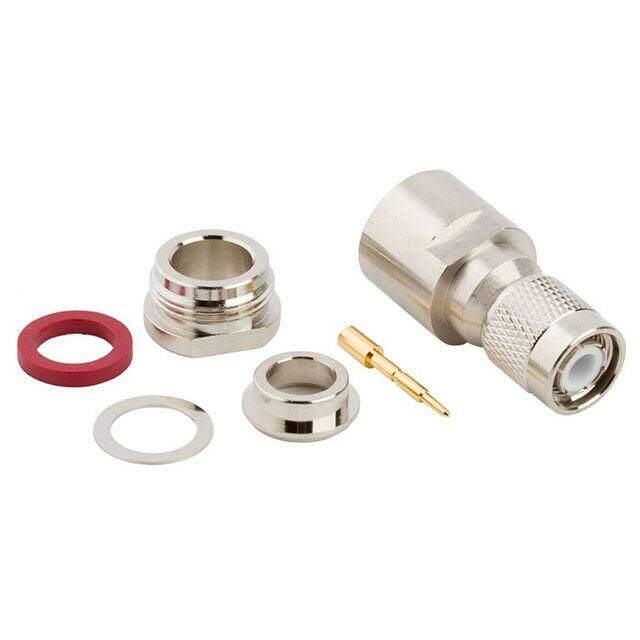

RF Connectors / Coaxial Connectors TNC CLAMP PLUG BELDEN 9913 9914
PDF
/
Buying Options
Total Price: USD $14.32
Unit Price: USD $14.3176
≥1 USD $14.3176
≥10 USD $12.68784
≥100 USD $12.199616
≥500 USD $11.711744
≥1000 USD $11.061072
≥3000 USD $10.085126
Inventory: 146
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Brass, Bronze
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Center Contact Plating Gold
Center Contact Material Brass
Technical
Packaging Bulk
Published 2005
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pin
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 500V
Fastening Type Threaded
Orientation Straight
Ingress Protection Weatherproof
Frequency 11GHz
Housing Color Silver
Impedance 50Ohm
Connector Style TNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 11GHz
Mating Cycles 500
Contact Termination Solder
Includes 6 pcs - 1 Connector, 1 Braid Clamp, 1 Clamp, 1 Contact, 1 Gasket, 1 Washer
Insertion Loss 0.18dB
Body Finish Nickel
Cable Group Belden 9913, 9914, LMR-400
Shield Termination Clamp
Dimensions
Length 38mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
