122386

Amphenol RF
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Coaxial Connectors (RF)

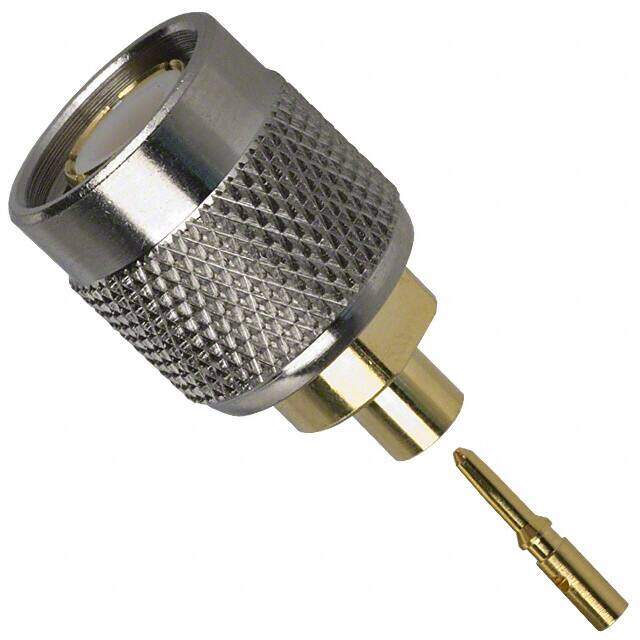

Description TNC Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line) Solder
PDF
/
Buying Options
Total Price: USD $5.27
Unit Price: USD $5.269834
≥1 USD $5.269834
≥10 USD $4.971548
≥100 USD $4.690132
≥500 USD $4.42466
≥1000 USD $4.174199
Inventory: 6019
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Length 23mm

Technical

VSWR 1.3
Cable Group RG-402 (.141 Semi Rigid)
Body Finish Nickel
Insertion Loss 0.18dB
Includes 2 pcs - 1 Connector, 1 Contact
Insulator Color NATURAL
Contact Termination Solder
Mating Cycles 500
Number of Ports 1
Connector Style TNC
Impedance 50Ohm
Coupling Type SNAP
Contact Style COAX
Housing Color Silver
Reliability COMMERCIAL
Frequency 11GHz
Orientation Straight
Total Number of Contacts 1
Option GENERAL PURPOSE
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Other RF Connectors
Fastening Type Threaded
Voltage - Rated 500V
Gender Male
Connector Type Plug, Male Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2004
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Center Contact Plating Gold
Body Material Brass
Weight 11.889988g
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging

Supply Chain

Factory Lead Time 9 Weeks
