122363
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
TNC Connector Jack, Female Socket 50 Ohm Panel Mount, Bulkhead - Front Side Nut Crimp
PDF
/
Buying Options
Total Price: USD $6.29
Unit Price: USD $6.292
≥1 USD $6.292
≥10 USD $5.68744
≥100 USD $5.372928
≥500 USD $5.241808
≥1000 USD $4.979744
≥3000 USD $4.455528
Inventory: 16
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Length 30.3mm
Technical
Cable Group RG-55, 142, 223, 400
Body Finish Nickel
Insertion Loss 0.18dB

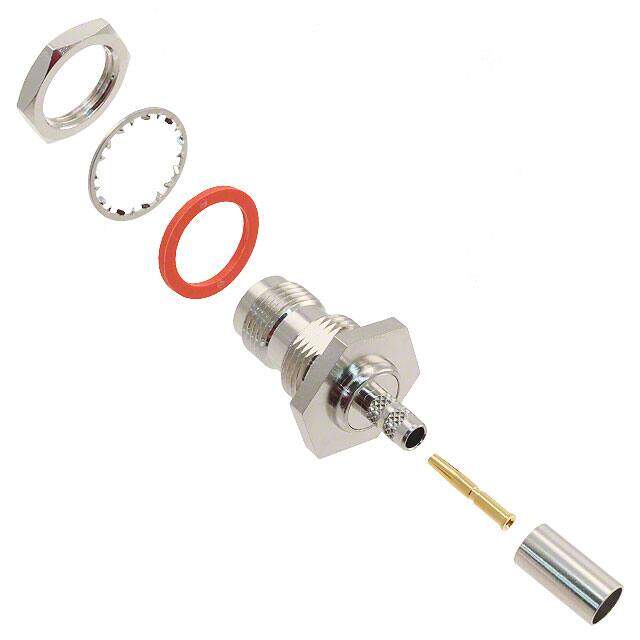

Includes 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut
Insulator Color NATURAL
Contact Termination Crimp
Mating Cycles 500
Number of Ports 1
Connector Style TNC
Impedance 50Ohm
Coupling Type SNAP
Contact Style COAX
Housing Color Silver
Reliability COMMERCIAL
Frequency 11GHz
Depth 17.5mm
Orientation Straight
Total Number of Contacts 1
Option GENERAL PURPOSE
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Fastening Type Threaded
Voltage - Rated 500V
Min Operating Temperature -40°C
Max Operating Temperature 155°C
Connector Type Jack, Female Socket
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2005
Packaging Bulk
Physical
Center Contact Material Phosphor Bronze
Center Contact Plating Gold
Body Material Brass
Weight 16.900001g
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount
Mount Bulkhead, Cable, Front Side Nut, Panel
Contact Material Bronze
Supply Chain
Factory Lead Time 9 Weeks
