122333
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

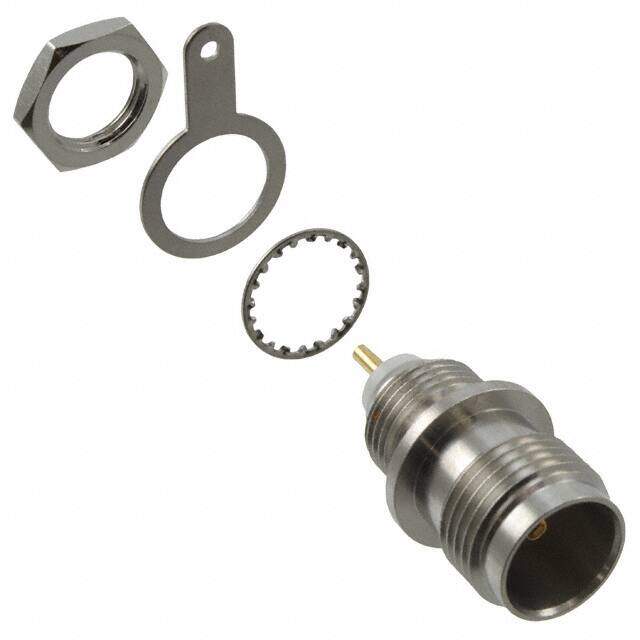

CONN TNC RCPT STR 75 OHM SOLDER
PDF
/
Buying Options
Total Price: USD $9.46
Unit Price: USD $9.46
≥1 USD $9.46
≥10 USD $8.51488
≥100 USD $8.021728
≥500 USD $7.815984
≥1000 USD $7.61024
≥3000 USD $6.787528
Inventory: 122
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Bronze
Contact Plating Gold
Mount Bulkhead, Front, Panel, Rear Side Nut
Mounting Type Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Dielectric Material Polyoxymethylene (POM) Acetal
Weight 7.500008g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Phosphor Bronze
Technical
Packaging Bulk
Published 2003
Feature Extended Insulation
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Socket
Max Operating Temperature 155°C
Min Operating Temperature -40°C
Voltage - Rated 500V
Fastening Type Threaded
Orientation Straight
Frequency 11GHz
Housing Color Silver
Impedance 75Ohm
Connector Style TNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 1GHz
Mating Cycles 500
Contact Termination Solder Cup
Includes 4 pcs - 1 Connector, 1 Lockwasher, 1 Nut, 1 Solder Tag
Insertion Loss 0.18dB
Body Finish Nickel
Shield Termination Solder Tag
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
