122230
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

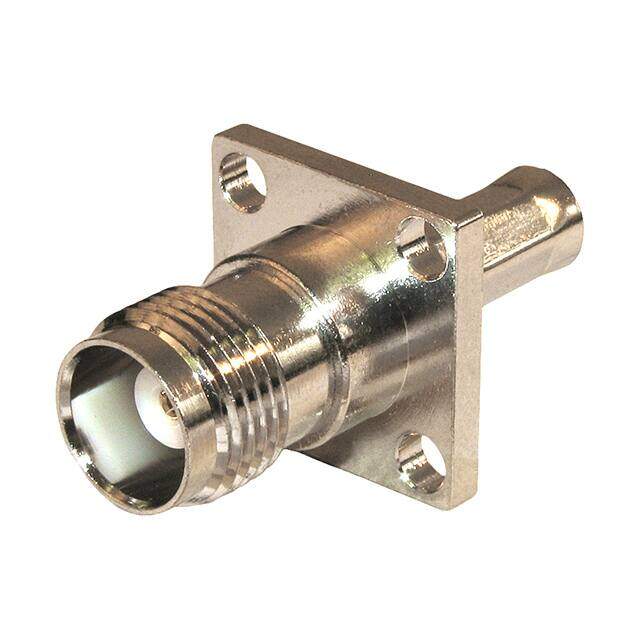

RF Connectors / Coaxial Connectors TNC PANEL CRIMP JACK RG58 50 OHM TF
PDF
/
Buying Options
Total Price: USD $8.88
Unit Price: USD $8.8792
≥1 USD $8.8792
≥10 USD $7.99392
≥100 USD $7.530336
≥500 USD $7.33744
≥1000 USD $7.14428
≥3000 USD $6.371966
Inventory: 118
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Bronze
Contact Plating Gold
Mount Bulkhead, Flanges, Panel
Mounting Type Panel Mount
Mounting Feature Flange
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Center Contact Plating Gold
Center Contact Material Phosphor Bronze
Technical
Packaging Bulk
Published 2009
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Jack, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 500V
Fastening Type Threaded
Orientation Straight
Frequency 11GHz
Housing Color Silver
Impedance 50Ohm
Connector Style TNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 11GHz
Mating Cycles 500
Contact Termination Crimp
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Insertion Loss 0.18dB
Body Finish Nickel
Cable Group RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Shield Termination Crimp
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
