122192
RoHS
RoHS compliant
RoHS compliantPackage 316
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
TNC Connector Jack, Female Socket 50 Ohm Panel Mount, Bulkhead - Front Side Nut Crimp
PDF
/
Buying Options
Total Price: USD $5.5
Unit Price: USD $5.5
≥1 USD $5.5
≥10 USD $4.99664
≥100 USD $4.732992
≥500 USD $4.622816
≥1000 USD $4.40264
≥3000 USD $3.852314
Inventory: 837
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Bronze
Contact Plating Gold
Mount Bulkhead, Front Side Nut, Panel
Mounting Type Panel Mount
Package / Case 316
Mounting Feature Bulkhead - Front Side Nut
Dielectric Material Polyoxymethylene (POM) Acetal
Weight 17.999991g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Phosphor Bronze
Technical
Packaging Bulk
Published 2001
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Jack, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -40°C
Voltage - Rated 500V
Fastening Type Threaded
Orientation Straight
Depth 17.5mm
Frequency 11GHz
Housing Color Silver
Impedance 50Ohm
Connector Style TNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 11GHz
Mating Cycles 500
Contact Termination Crimp

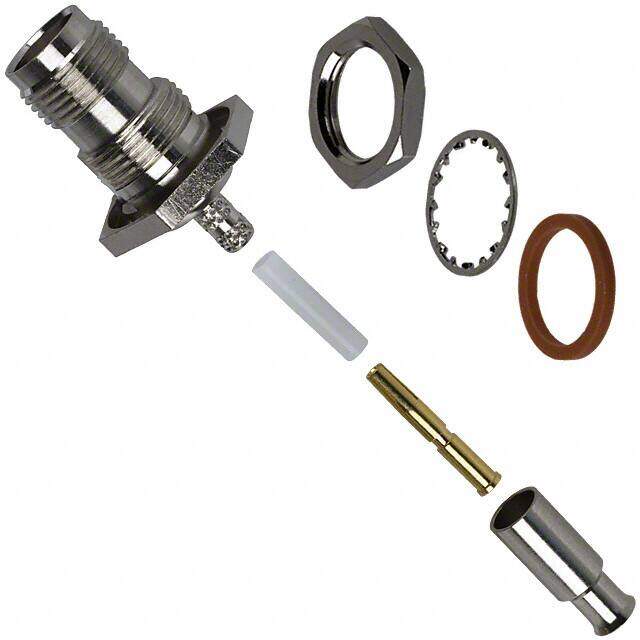

Includes 7 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut, 1 Sleeve
Insertion Loss 0.18dB
Body Finish Nickel
Cable Group RG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Shield Termination Crimp
Dimensions
Length 28.8mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
