122192-15
RoHS
RoHS compliant
RoHS compliantPackage 316
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
TNC Connector Jack, Female Socket 50 Ohm Panel Mount, Bulkhead - Front Side Nut Crimp
PDF
/
Buying Options
Total Price: USD $22.4
Unit Price: USD $22.396
≥1 USD $22.396
≥10 USD $19.61432
≥100 USD $18.76688
≥500 USD $18.161616
≥1000 USD $17.556264
≥3000 USD $16.587622
Inventory: 370
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Dimensions
Length 29mm
Technical
Shield Termination Crimp
Cable Group RG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Body Finish Nickel
Insertion Loss 0.18dB

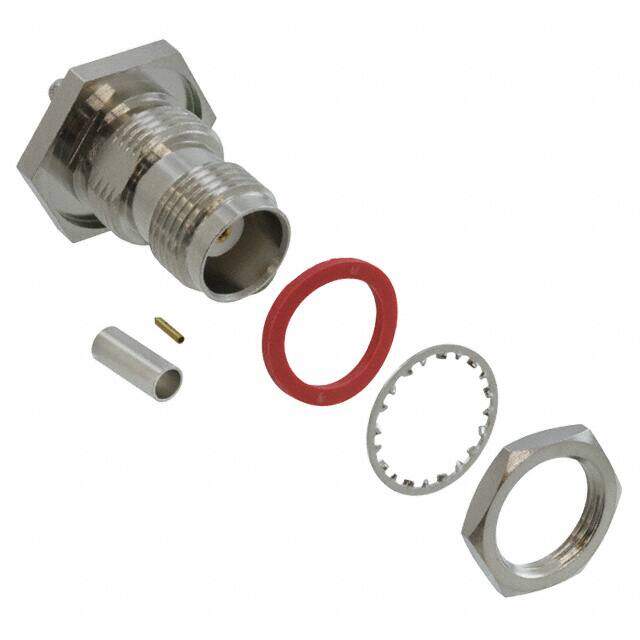

Includes 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut
Contact Termination Crimp
Mating Cycles 500
Frequency (Max) 11GHz
Body Plating Nickel
Number of Ports 1
Connector Style TNC
Impedance 50Ohm
Housing Color Silver
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation Straight
Fastening Type Threaded
Voltage - Rated 500V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Jack, Female Socket
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2010
Packaging Bulk
Operating Temperature -65°C~165°C
Physical
Center Contact Material Phosphor Bronze
Center Contact Plating Gold
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Mounting Feature Bulkhead - Front Side Nut
Package / Case 316
Mounting Type Panel Mount
Mount Bulkhead, Front Side Nut, Panel
Contact Plating Gold
Contact Material Bronze
Supply Chain
Factory Lead Time 9 Weeks
