122125
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
RF Connectors / Coaxial Connectors TNC ST CRIMP JACK 75 OHM RG59 TEF
PDF
/
Buying Options
Total Price: USD $4.75
Unit Price: USD $4.752
≥1 USD $4.752
≥10 USD $4.3164
≥100 USD $4.08848
≥500 USD $3.993616
≥1000 USD $3.80336
≥3000 USD $3.327958
Inventory: 491
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 28.8mm
Technical
Shield Termination Crimp
Cable Group RG-59, 59B, 62, 140, 210, Belden 8241, 8263, 8279, 9209
Body Finish Nickel
Insertion Loss 0.18dB

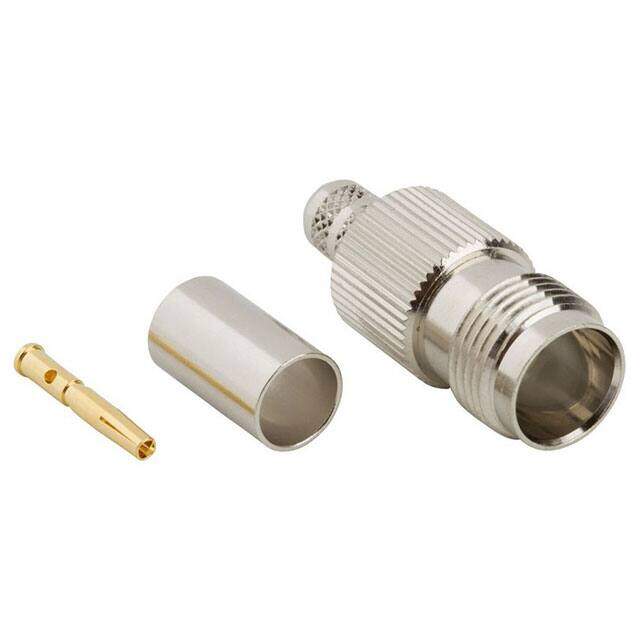

Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Contact Termination Crimp
Mating Cycles 500
Frequency (Max) 1GHz
Body Plating Nickel
Number of Ports 1
Connector Style TNC
Impedance 75Ohm
Polarity Standard
Housing Color Silver
Frequency 1GHz
Orientation Straight
Fastening Type Threaded
Voltage - Rated 500V
Gender Female
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Jack, Female Socket
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2009
Packaging Bulk
Physical
Center Contact Material Phosphor Bronze
Center Contact Plating Gold
Body Material Brass
Weight 12.249999g
Dielectric Material Polyoxymethylene (POM) Acetal
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Bronze
Supply Chain
Factory Lead Time 10 Weeks
