122111
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
TNC Connector Plug, Male Pin 75 Ohm Free Hanging (In-Line) Crimp
PDF
/
Buying Options
Total Price: USD $5.01
Unit Price: USD $5.008592
≥1 USD $5.008592
≥10 USD $4.725083
≥100 USD $4.457633
≥500 USD $4.205309
≥1000 USD $3.967277
Inventory: 6594
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Dielectric Material Polyoxymethylene (POM) Acetal
Weight 13.999987g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Brass
Technical
Packaging Bulk
Published 2006
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Plug, Male Pin
Max Operating Temperature 155°C
Min Operating Temperature -40°C
Voltage - Rated 500V
Fastening Type Threaded
Orientation Straight
Frequency 11GHz
Housing Color Silver
Impedance 75Ohm
Connector Style TNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 1GHz
Mating Cycles 500
Contact Termination Crimp

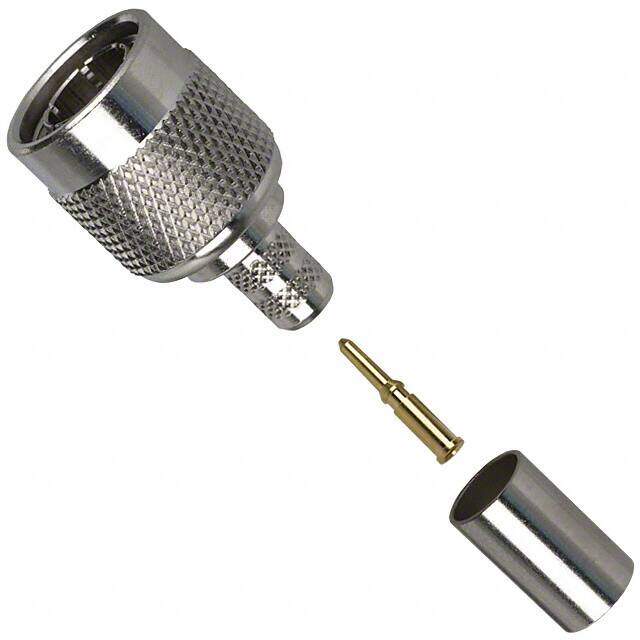

Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Insertion Loss 0.18dB
Body Finish Nickel
Cable Group RG-59, 59B, 62, 140, 210, Belden 8241, 8263, 8279, 9209
Shield Termination Crimp
Dimensions
Length 25mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
