112995
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

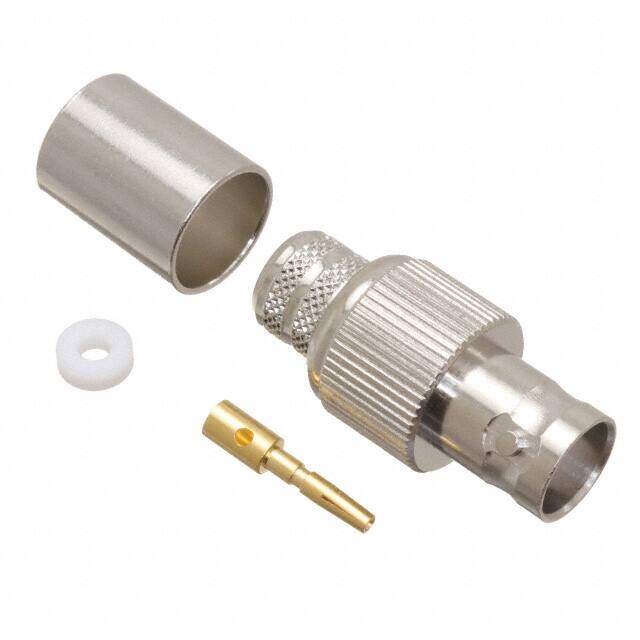

BNC STRAIGHT CRIMP JACK, LMR-400
PDF
/
Buying Options
Total Price: USD $11.64
Unit Price: USD $11.639576
≥1 USD $11.639576
≥10 USD $10.980733
≥100 USD $10.359186
≥500 USD $9.772819
≥1000 USD $9.219632
Inventory: 6161
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Shield Termination Crimp
Cable Group Belden 9913, 9914, LMR-400
Body Finish Nickel
Includes 4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Sleeve
Contact Termination Crimp
Mating Cycles 500
Frequency (Max) 6GHz
Number of Ports 1
Connector Style BNC
Impedance 50Ohm
Housing Color Silver
Fastening Type Bayonet Lock
Connector Type Jack, Female Socket
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Operating Temperature -65°C~165°C
Physical
Center Contact Material Phosphor Bronze
Center Contact Plating Gold
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Mounting Type Free Hanging (In-Line)
Supply Chain
Factory Lead Time 8 Weeks
